CAT CLASS: 0070016

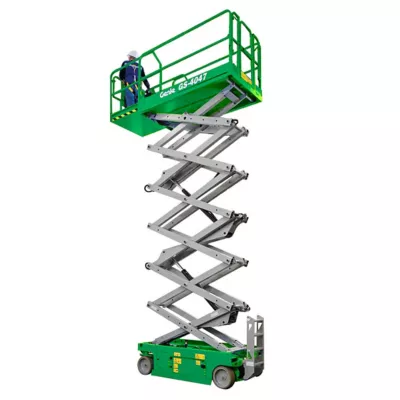

40'-44' Electric Scissor Lift Narrow

40'-44' Electric Scissor Lift Narrow
Key Specs
  • Hydrostatic transmission
  • Platform capacity up to 770 lbs
  • Up to 25% gradeability
Key Specs
  • Hydrostatic transmission
  • Platform capacity up to 770 lbs
  • Up to 25% gradeability

Key Features

  • Hydrostatic transmission
  • Platform capacity up to 770 lbs
  • Up to 25% gradeability
  • Weight 7,100 lbs
Ideal for maneuvering in tight spaces, these 40'-44' electric scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces. The scissor has a platform height of 40’ and a maximum working height of 46'. The platform size measures up to 89” x 46” depending on the model, with an extension deck of 36" for extra working area. Further, the platform capacity of up to 770 lbs allows for two workers with tools and supplies at the same time for optimal efficiency on the job. The slab lift features non-marking tires for work on delicate flooring. Additionally, this electric powered scissor lift is drivable while fully elevated and should be used on flat and stable surfaces. These units weigh approximately 7,100 lbs. Lastly, it is important to wear a safety harness while operating aerial lifts.

Overview

Ideal for maneuvering in tight spaces, these 40'-44' electric scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces. The scissor has a platform height of 40’ and a maximum working height of 46'. The platform size measures up to 89” x 46” depending on the model, with an extension deck of 36" for extra working area. Further, the platform capacity of up to 770 lbs allows for two workers with tools and supplies at the same time for optimal efficiency on the job. The slab lift features non-marking tires for work on delicate flooring. Additionally, this electric powered scissor lift is drivable while fully elevated and should be used on flat and stable surfaces. These units weigh approximately 7,100 lbs. Lastly, it is important to wear a safety harness while operating aerial lifts.

Key Features

  • Hydrostatic transmission
  • Platform capacity up to 770 lbs
  • Up to 25% gradeability
  • Weight 7,100 lbs

Products are subject to availability.

Specifications

Make Genie Genie JLG JLG Skyjack
Model GS-4046 GS-4047 ES4046 R4045 4740
Fuel Type Electric Electric Electric Electric Electric
Gradeability N.A. N.A. 10% N.A. N.A.
Overall Dimensions 98"L x 46"W 96"L x 47"W 106.6"L x 46"W 106"L x 45"W 94.5"L x 47"W
Platform Capacity 770 lbs 770 lbs 770 lbs 770 lbs 770 lbs
Platform Extension 36 " 36 " 36 " 36 " 36 "
Platform Height 39 ' 39 ' 39.1000 ' 39.2500 ' 39 '
Platform Size 89" x 46" 89" x 46" 97.9" x 37.6" 96" x 41" 86" x 42"
Power Source 24V DC 24V DC 4 x 6V 255 AH 4 x 12V 150 amp-hr 24V DC
Retracted Height 101 " 98 " 99.5000 " 100 " 99 "
Weight 7022 lbs 7185 lbs 6230 lbs 7000 lbs 7480 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make Genie Genie JLG JLG Skyjack
Model GS-4046 GS-4047 ES4046 R4045 4740
Fuel Type Electric Electric Electric Electric Electric
Gradeability N.A. N.A. 10% N.A. N.A.
Overall Dimensions 98"L x 46"W 96"L x 47"W 106.6"L x 46"W 106"L x 45"W 94.5"L x 47"W
Platform Capacity 770 lbs 770 lbs 770 lbs 770 lbs 770 lbs
Platform Extension 36 " 36 " 36 " 36 " 36 "
Platform Height 39 ' 39 ' 39.1000 ' 39.2500 ' 39 '
Platform Size 89" x 46" 89" x 46" 97.9" x 37.6" 96" x 41" 86" x 42"
Power Source 24V DC 24V DC 4 x 6V 255 AH 4 x 12V 150 amp-hr 24V DC
Retracted Height 101 " 98 " 99.5000 " 100 " 99 "
Weight 7022 lbs 7185 lbs 6230 lbs 7000 lbs 7480 lbs
  • Safety Harness
  • Wallet (Training Card)

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
