CAT CLASS: 0580300

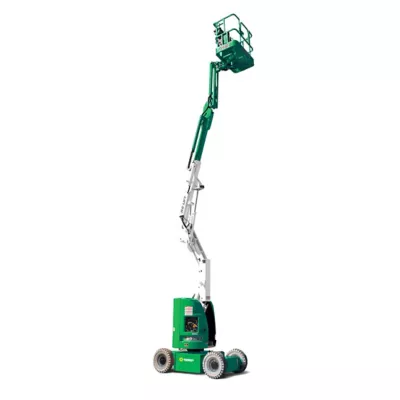

30' Articulating Electric Manlift Narrow w/ Jib

30' Articulating Electric Manlift Narrow w/ Jib
Key Specs
  • Narrow chassis width
  • Horizontal outreach of 20'
  • Up and over reach of 13'
Key Specs
  • Narrow chassis width
  • Horizontal outreach of 20'
  • Up and over reach of 13'

Key Features

  • Narrow chassis width
  • Horizontal outreach of 20'
  • Up and over reach of 13'
  • 110V AC receptacle in the basket
  • Solid, non-marking tires
The 30' articulating manlift with jib is a quiet, emission-free electric lift ideal for confined work spaces. Being only 48" wide, allows the lift to easily roll through standard double doorways. Additionally, the electric boom lift features automatic hill and ramp braking, as well as, 180° hydraulic platform rotator for precise positioning and easy operation. The lift has a platform height of 30' and a maximum working height of 36'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 48" x 30" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. The electric man lift has a horizontal outreach of 20', with an up and over reach of 13'. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Overview

The 30' articulating manlift with jib is a quiet, emission-free electric lift ideal for confined work spaces. Being only 48" wide, allows the lift to easily roll through standard double doorways. Additionally, the electric boom lift features automatic hill and ramp braking, as well as, 180° hydraulic platform rotator for precise positioning and easy operation. The lift has a platform height of 30' and a maximum working height of 36'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 48" x 30" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. The electric man lift has a horizontal outreach of 20', with an up and over reach of 13'. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Key Features

  • Narrow chassis width
  • Horizontal outreach of 20'
  • Up and over reach of 13'
  • 110V AC receptacle in the basket
  • Solid, non-marking tires

Products are subject to availability.

Specifications

Make Genie JLG
Model Z-30/20N E300AJ
Gradeability 35% 25%
Horizontal Reach 21.4200 ' 20 '
Overall Dimensions 16' 9"L x 47"W 18'L x 48"W
Overall Width 47 " N.A.
Platform Capacity 500 lbs 500 lbs
Platform Height 30 ' 30 '
Platform Size 46" x 30" 48" x 30"
Stowed Height 79" 79"
Up & Over Height 12.6700 ' 13.0800 '
Weight 14220 lbs 14600 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make Genie JLG
Model Z-30/20N E300AJ
Gradeability 35% 25%
Horizontal Reach 21.4200 ' 20 '
Overall Dimensions 16' 9"L x 47"W 18'L x 48"W
Overall Width 47 " N.A.
Platform Capacity 500 lbs 500 lbs
Platform Height 30 ' 30 '
Platform Size 46" x 30" 48" x 30"
Stowed Height 79" 79"
Up & Over Height 12.6700 ' 13.0800 '
Weight 14220 lbs 14600 lbs
  • Safety Harness
  • Wallet (Training Card)

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
