CAT CLASS:
0580301

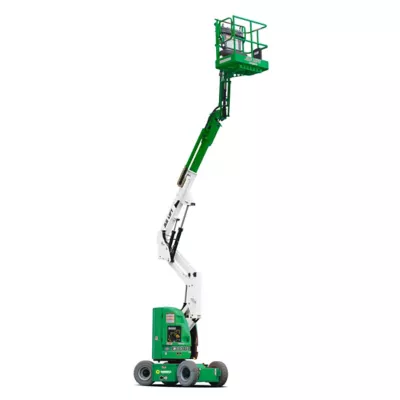

30' Articulating Electric Manlift Narrow Rotajib
Key Specs
- Horizontal rotating jib up to 200° rotation
- Narrow chassis width
- Horizontal outreach of 20'
Key Specs
- Horizontal rotating jib up to 200° rotation
- Narrow chassis width
- Horizontal outreach of 20'
Key Features
- Horizontal rotating jib up to 200° rotation
- Narrow chassis width
- Horizontal outreach of 20'
- Up and over reach of 13'
- Platform capacity of 500 lbs
The 30' articulating manlift is a quiet, emission-free electric lift ideal for confined work spaces. Being only 48" wide, allows the lift to easily roll through standard double doorways. The 30' articulating boom lift offers rotation of up to 180° for operation in the most sensitive work environments. The lift features automatic traction control for navigating over uneven surfaces. It has a platform height of 30' and a maximum working height of 36'. It boasts a horizontal outreach of 20', with an up and over reach of 13'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 48" x 30" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.
Overview
The 30' articulating manlift is a quiet, emission-free electric lift ideal for confined work spaces. Being only 48" wide, allows the lift to easily roll through standard double doorways. The 30' articulating boom lift offers rotation of up to 180° for operation in the most sensitive work environments. The lift features automatic traction control for navigating over uneven surfaces. It has a platform height of 30' and a maximum working height of 36'. It boasts a horizontal outreach of 20', with an up and over reach of 13'. The articulating boom allows you to reach those tough to get to areas. The platform on this lift measures up to 48" x 30" depending on the model. Further, the platform capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. It also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.
Key Features
- Horizontal rotating jib up to 200° rotation
- Narrow chassis width
- Horizontal outreach of 20'
- Up and over reach of 13'
- Platform capacity of 500 lbs
Products are subject to availability.
Specifications
| Make | Genie | JLG |
| Model | Z-30/20NRJ | E300AJP |
| Gradeability | 35% | 25% |
| Horizontal Reach | 20.5000 ' | 20.5000 ' |
| Overall Dimensions | 17' 5" x 47" | 18' 8"L x 48"W |
| Overall Width | 47 " | 48 " |
| Platform Capacity | 500 lbs | 500 lbs |
| Platform Height | 30 ' | 30 ' |
| Platform Size | 46" x 30" | 48" x 30" |
| Stowed Height | 79" | 79" |
| Up & Over Height | 12.6700 ' | 13.0800 ' |
| Weight | 14600 lbs | 15100 lbs |
Specifications & documentation
Products are subject to availability.
Specifications
| Make | Genie | JLG |
| Model | Z-30/20NRJ | E300AJP |
| Gradeability | 35% | 25% |
| Horizontal Reach | 20.5000 ' | 20.5000 ' |
| Overall Dimensions | 17' 5" x 47" | 18' 8"L x 48"W |
| Overall Width | 47 " | 48 " |
| Platform Capacity | 500 lbs | 500 lbs |
| Platform Height | 30 ' | 30 ' |
| Platform Size | 46" x 30" | 48" x 30" |
| Stowed Height | 79" | 79" |
| Up & Over Height | 12.6700 ' | 13.0800 ' |
| Weight | 14600 lbs | 15100 lbs |
- Safety Harness
- Wallet (Training Card)
Safety Information
It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
- Safety Harness
- Wallet (Training Card)
Sunbelt offers a variety of compatible accessories, add-ons and PPE equipment to add to your rental. Availability may vary based on location.
Accessories and add-ons
Sunbelt offers a variety of compatible accessories, add-ons and PPE equipment to add to your rental. Availability may vary based on location.
