CAT CLASS:
0070023

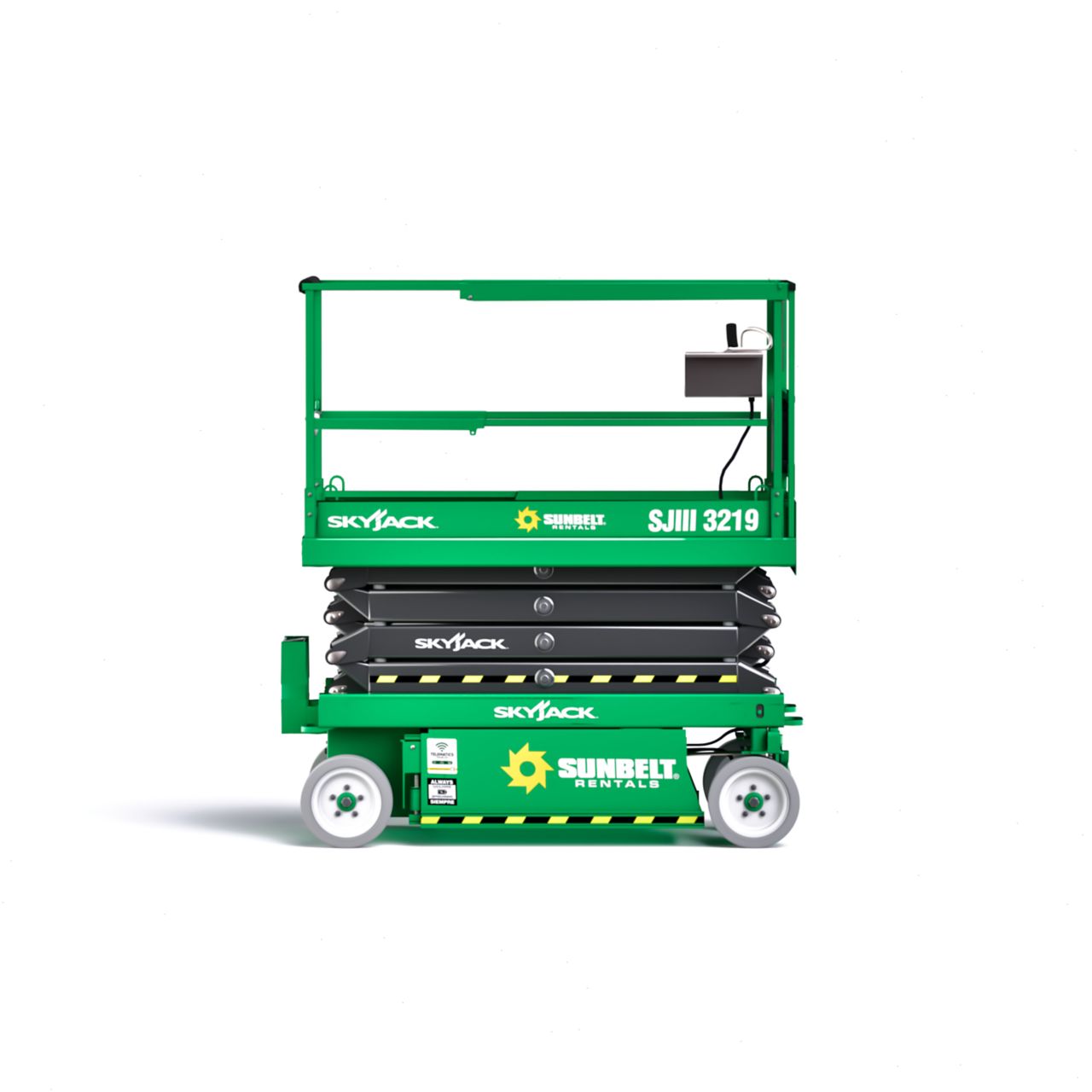

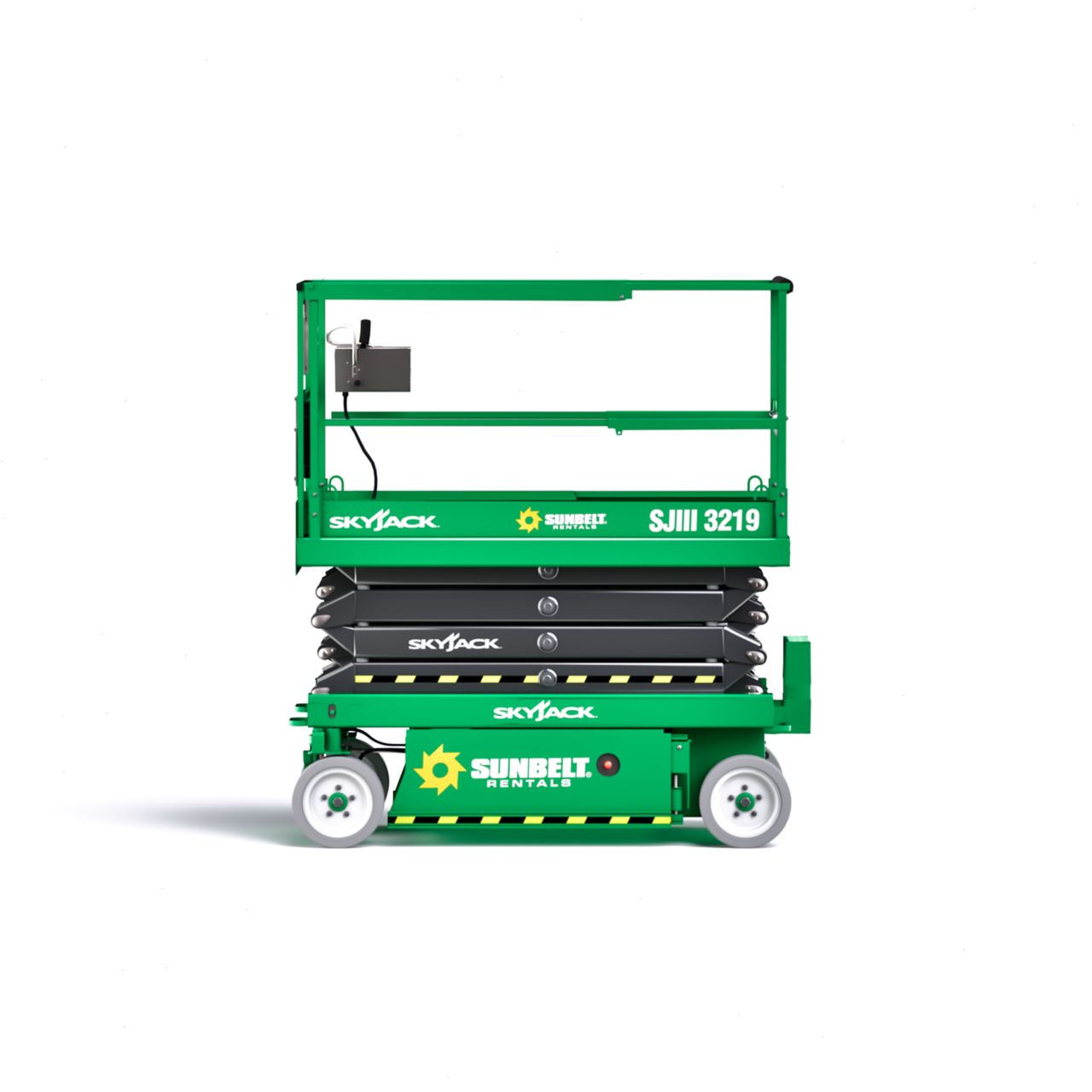

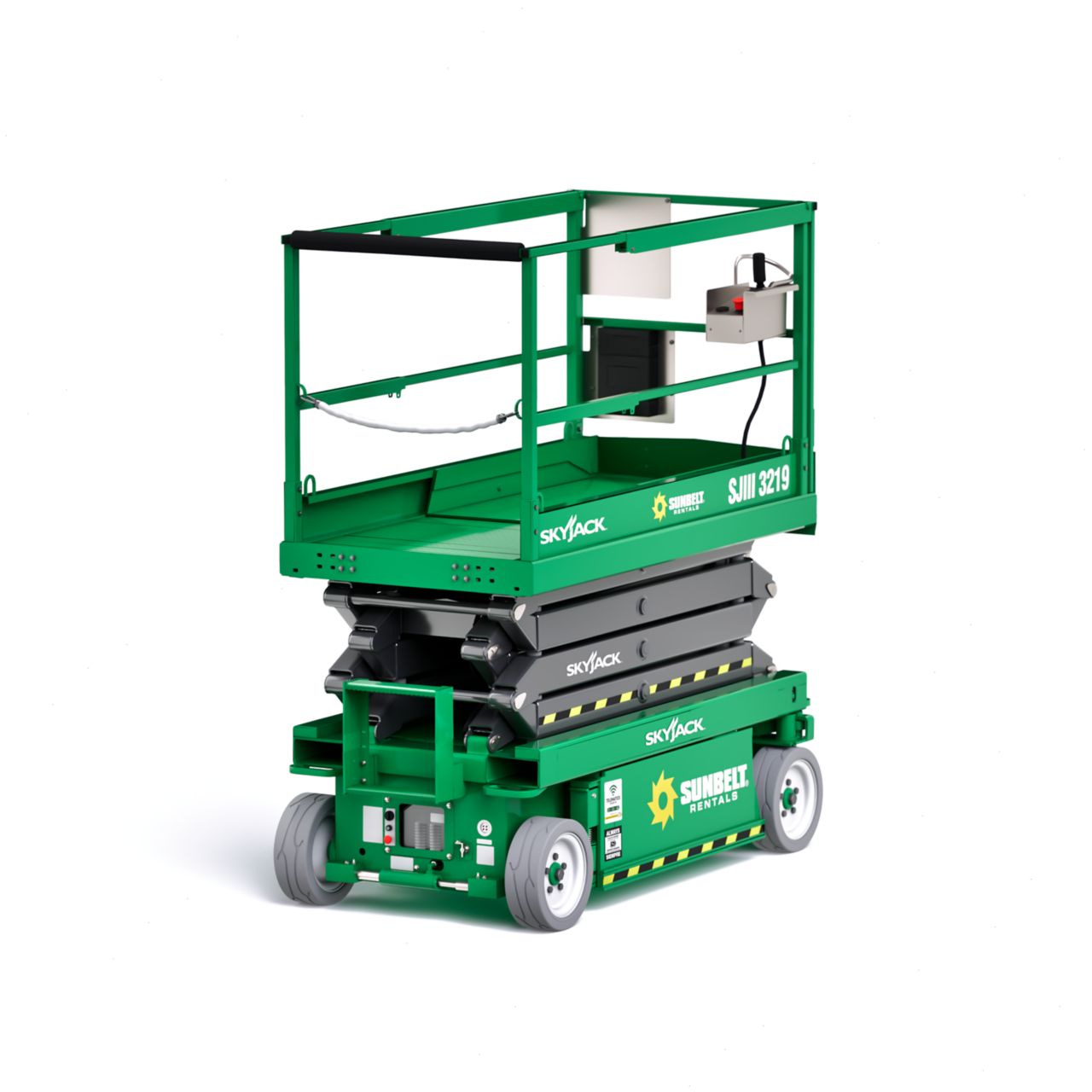

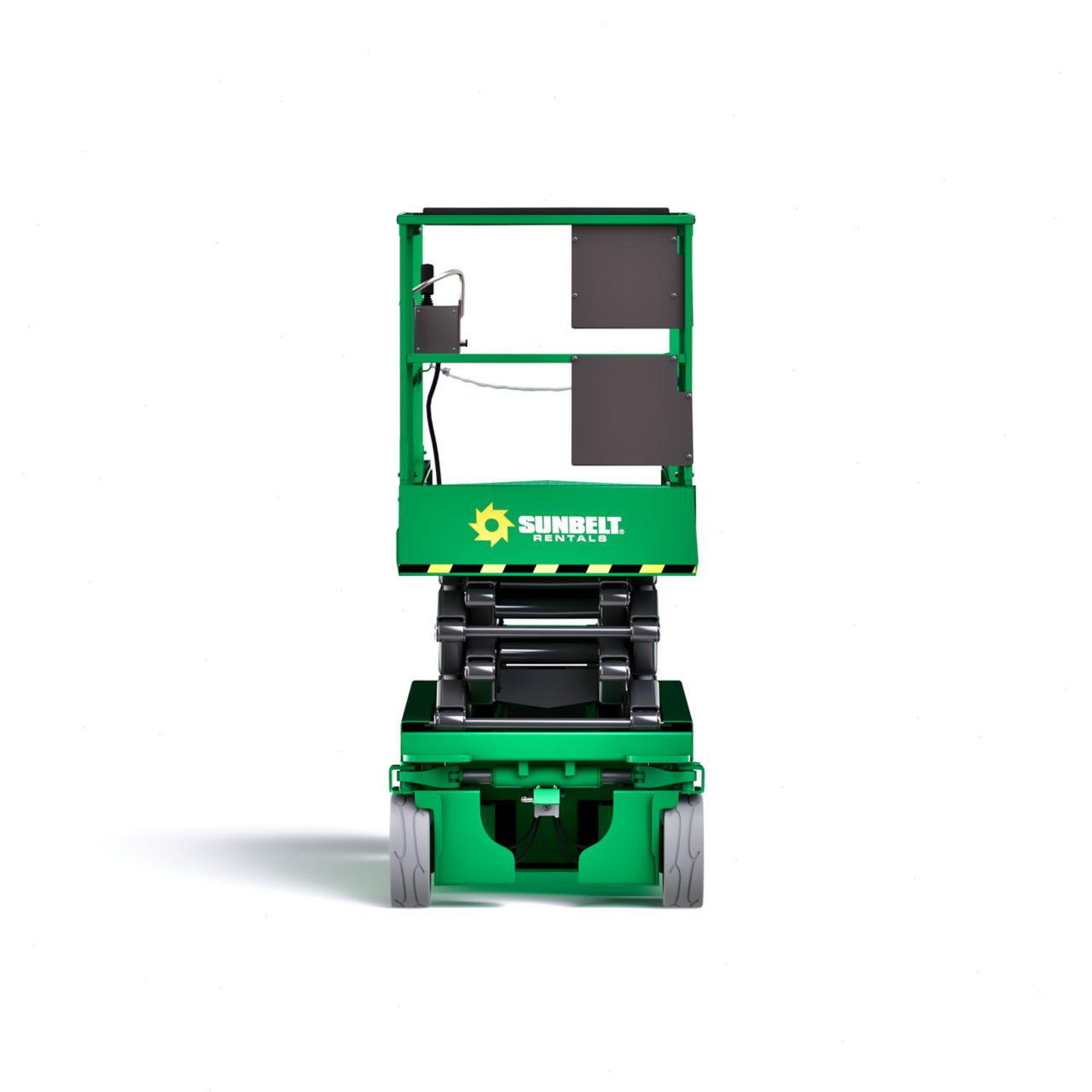

19' Electric Scissor Lift w/ Leak Containment System
Key Specs
- Working height of 25'
- Platform capacity up to 500 lbs
- Up to 25% gradeability
Key Specs
- Working height of 25'
- Platform capacity up to 500 lbs
- Up to 25% gradeability
Key Features
- Working height of 25'
- Platform capacity up to 500 lbs
- Up to 25% gradeability
- Zero-emission electric operation
- Front-wheel drive
- Solid, non-marking tires
- Leak containment system
- Zero inside turning radius
This light weight electric scissor lift with leak containment system is perfect for jobs in tight work areas. The scissor lift easily fits through door ways and on most elevators. It has a platform height of up to 19’ depending on the model and a maximum working height of 25'. The platform measures up 54”x27.5” with an extension deck of 24" for extra work area. Further, the platform capacity of 500 lbs allows for two workers at a time for optimal efficiency on the job. Additionally, the slab lift features a leak containment system to prevent hydraulic leaks, along with non-marking tires for work on delicate flooring. This electric powered scissor lift is drivable at full height and should be used on flat and stable surfaces. Lastly, it is important to wear a safety harness while operating aerial lifts.
Overview
This light weight electric scissor lift with leak containment system is perfect for jobs in tight work areas. The scissor lift easily fits through door ways and on most elevators. It has a platform height of up to 19’ depending on the model and a maximum working height of 25'. The platform measures up 54”x27.5” with an extension deck of 24" for extra work area. Further, the platform capacity of 500 lbs allows for two workers at a time for optimal efficiency on the job. Additionally, the slab lift features a leak containment system to prevent hydraulic leaks, along with non-marking tires for work on delicate flooring. This electric powered scissor lift is drivable at full height and should be used on flat and stable surfaces. Lastly, it is important to wear a safety harness while operating aerial lifts.
Key Features
- Working height of 25'
- Platform capacity up to 500 lbs
- Up to 25% gradeability
- Zero-emission electric operation
- Front-wheel drive
- Solid, non-marking tires
- Leak containment system
- Zero inside turning radius
Products are subject to availability.
Specifications
| Make | Genie | JLG | MEC | Skyjack |
| Model | GS-1932M | ES1930M | Micro19 | SJ3219M |
| Electric Drive | Yes | Yes | Yes | Yes |
| Fuel Type | Electric | Electric | Electric | Electric |
| Gradeability | 25% | 24% | 25% | 25% |
| Ground Bearing Pressure | 139 PSI | 132 PSI | 116 PSI | 132 PSI |
| Indoor Platform Height | 19.2500 ' | 18.5000 ' | 18.2500 ' | 18.1000 ' |
| Occupants Indoor/Outdoor | 2/1 | 2/1 | 2/1 | 2/1 |
| Outdoor Platform Height | 14.7500 ' | 15 ' | 13 ' | 16 ' |
| Overall Dimensions | 55"L x 32"W x 77"H | 58.2"L x 30"W x 78.1"H | 60"L x 32"W x 79"H | 60"L x 32"W x 79"H |
| Platform Capacity | 500 lbs | 500 lbs | 500 lbs | 500 lbs |
| Platform Extension | 36 " | 21.6000 " | 24 " | 20 " |
| Platform Extension Capacity | 250 lbs | 254 lbs | 250 lbs | 220 lbs |
| Platform Size | 55" x 30.5" | 60" x 27.5" | 54" x 27.5" | 60" x 27.5" |
| Retracted Height | 77 " | 78.1000 " | 79 " | 79.5000 " |
| Step Up Access Deck | Available | Available | Available | Available |
| Transport Width | 32 " | 30 " | 32 " | 32 " |
| Weight | 2600 lbs | 2978 lbs | 2860 lbs | 2675 lbs |
Specifications & documentation
Products are subject to availability.
Specifications
| Make | Genie | JLG | MEC | Skyjack |
| Model | GS-1932M | ES1930M | Micro19 | SJ3219M |
| Electric Drive | Yes | Yes | Yes | Yes |
| Fuel Type | Electric | Electric | Electric | Electric |
| Gradeability | 25% | 24% | 25% | 25% |
| Ground Bearing Pressure | 139 PSI | 132 PSI | 116 PSI | 132 PSI |
| Indoor Platform Height | 19.2500 ' | 18.5000 ' | 18.2500 ' | 18.1000 ' |
| Occupants Indoor/Outdoor | 2/1 | 2/1 | 2/1 | 2/1 |
| Outdoor Platform Height | 14.7500 ' | 15 ' | 13 ' | 16 ' |
| Overall Dimensions | 55"L x 32"W x 77"H | 58.2"L x 30"W x 78.1"H | 60"L x 32"W x 79"H | 60"L x 32"W x 79"H |
| Platform Capacity | 500 lbs | 500 lbs | 500 lbs | 500 lbs |
| Platform Extension | 36 " | 21.6000 " | 24 " | 20 " |
| Platform Extension Capacity | 250 lbs | 254 lbs | 250 lbs | 220 lbs |
| Platform Size | 55" x 30.5" | 60" x 27.5" | 54" x 27.5" | 60" x 27.5" |
| Retracted Height | 77 " | 78.1000 " | 79 " | 79.5000 " |
| Step Up Access Deck | Available | Available | Available | Available |
| Transport Width | 32 " | 30 " | 32 " | 32 " |
| Weight | 2600 lbs | 2978 lbs | 2860 lbs | 2675 lbs |
- Safety Harness
- Wallet (Training Card)
Safety Information
It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
