CAT CLASS: 0580865

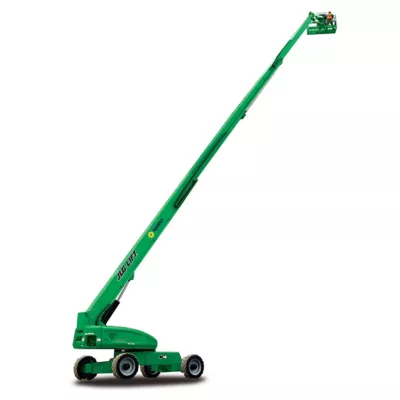

135' Straight Manlift

135' Straight Manlift
Key Specs
  • 1,000 lbs/500 lbs platform capacity
  • 80’ horizontal reach
  • Fuel efficient tier 4 engine
Key Specs
  • 1,000 lbs/500 lbs platform capacity
  • 80’ horizontal reach
  • Fuel efficient tier 4 engine

Key Features

  • 1,000 lbs/500 lbs platform capacity
  • 80’ horizontal reach
  • Fuel efficient tier 4 engine
  • 110V AC receptacle in the platform
The 135' straight manlift is ideal for outdoor construction and industrial applications where extensive reach is required. The ultra boom has the ability to lift to 135’ in 95 seconds. It has a platform height of 135' and a maximum working height of 141', as well as, a horizontal outreach of 80'. The platform measures up to 96" x 36" for ample working space. Further, the restricted platform capacity of 1,000 lbs and unrestricted capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. In addition, the lift also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Overview

The 135' straight manlift is ideal for outdoor construction and industrial applications where extensive reach is required. The ultra boom has the ability to lift to 135’ in 95 seconds. It has a platform height of 135' and a maximum working height of 141', as well as, a horizontal outreach of 80'. The platform measures up to 96" x 36" for ample working space. Further, the restricted platform capacity of 1,000 lbs and unrestricted capacity of 500 lbs allows for multiple workers with tools and supplies at the same time for optimal efficiency on the job. In addition, the lift also features a 110V AC receptacle in the basket for a convenient power source at working height. Lastly, it is important to wear a safety harness while operating aerial lifts.

Key Features

  • 1,000 lbs/500 lbs platform capacity
  • 80’ horizontal reach
  • Fuel efficient tier 4 engine
  • 110V AC receptacle in the platform

Products are subject to availability.

Specifications

Make JLG
Model 1350SJP
Fuel Type Diesel
Gradeability 45%
Horizontal Reach 80 '
Overall Dimensions 38' 11"L x 98"W
Platform Height 135 '
Platform Size 96" x 36"
Restricted Platform Capacity 1000 lbs
Unrestricted Platform Capacity 500 lbs
Weight 45000 lbs

Specifications & documentation

Products are subject to availability.

Specifications

Make JLG
Model 1350SJP
Fuel Type Diesel
Gradeability 45%
Horizontal Reach 80 '
Overall Dimensions 38' 11"L x 98"W
Platform Height 135 '
Platform Size 96" x 36"
Restricted Platform Capacity 1000 lbs
Unrestricted Platform Capacity 500 lbs
Weight 45000 lbs
  • Safety Harness
  • Wallet (Training Card)

Safety Information

It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.

  • Safety Harness
  • Wallet (Training Card)
