CAT CLASS:
0070006

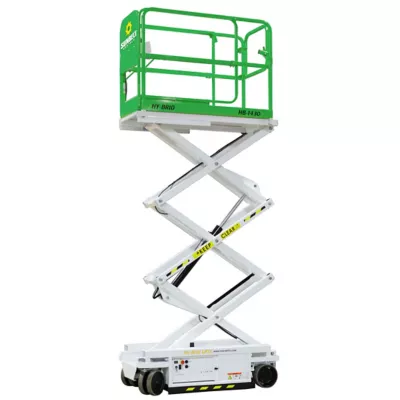

10' Scissor Lift Lightweight
Key Specs
- Platform height up to 10’
- Platform capacity up to 750 lbs
- Solid, non-marking tires
Key Specs
- Platform height up to 10’
- Platform capacity up to 750 lbs
- Solid, non-marking tires
Key Features
- Platform height up to 10’
- Platform capacity up to 750 lbs
- Solid, non-marking tires
- Weighs up to 1670 lbs
This light weight electric scissor lift is perfect for a job that requires less reach and height, but demands more workspace and lift capacity. The scissor has a platform height of 10’ and a maximum working height of 16'. The platform measures up to 64” x 30” with an extension deck of 30" for extra working area. Further, the platform capacity of up to 750 lbs allows for two workers with tools and supplies at the same time for optimal efficiency on the job. This dual front wheel drive unit is narrow enough to fit through a single doorway. Additionally, the slab lift features non-marking tires for work on delicate flooring. This electric powered scissor lift is drivable at full height and should be used on flat and stable surfaces. A weight of only 1,273 lbs makes this lift convenient to transport. Lastly, it is important to wear a safety harness while operating aerial lifts.
Overview
This light weight electric scissor lift is perfect for a job that requires less reach and height, but demands more workspace and lift capacity. The scissor has a platform height of 10’ and a maximum working height of 16'. The platform measures up to 64” x 30” with an extension deck of 30" for extra working area. Further, the platform capacity of up to 750 lbs allows for two workers with tools and supplies at the same time for optimal efficiency on the job. This dual front wheel drive unit is narrow enough to fit through a single doorway. Additionally, the slab lift features non-marking tires for work on delicate flooring. This electric powered scissor lift is drivable at full height and should be used on flat and stable surfaces. A weight of only 1,273 lbs makes this lift convenient to transport. Lastly, it is important to wear a safety harness while operating aerial lifts.
Key Features
- Platform height up to 10’
- Platform capacity up to 750 lbs
- Solid, non-marking tires
- Weighs up to 1670 lbs
Products are subject to availability.
Specifications
| Make | BRAVI | Hy-Brid | JLG | MEC |
| Model | Leonardo HD | HB1030 S2 | 10MSP | Nano10-XD |
| Overall Dimensions | 46"L x 28"W | 64"L x 30"W | 61"L x 31.5"W | 45"L x 30"W |
| Platform Capacity | 397 lbs | 750 lbs | 350 lbs | 500 lbs |
| Platform Extension | 26.3000 " | 30 " | N.A. | 20 " |
| Platform Height | 9.5000 ' | 10 ' | 10 ' | 9.8000 ' |
| Platform Size | 45" x 26" | 60" x 25" | 27" x 20" | 45" x 22.5" |
| Power Source | 24V DC | 24V DC | 4 Sealed 210 amp-hr Maintenance Free (AGM) | 24V DC |
| Retracted Height | 68 " | 66 " | 57 " | 63 " |
| Stowed Height | N.A. | N.A. | 100" | N.A. |
| Weight | 1212 lbs | 1273 lbs | 1100 lbs | 1235 lbs |
Specifications & documentation
Products are subject to availability.
Specifications
| Make | BRAVI | Hy-Brid | JLG | MEC |
| Model | Leonardo HD | HB1030 S2 | 10MSP | Nano10-XD |
| Overall Dimensions | 46"L x 28"W | 64"L x 30"W | 61"L x 31.5"W | 45"L x 30"W |
| Platform Capacity | 397 lbs | 750 lbs | 350 lbs | 500 lbs |
| Platform Extension | 26.3000 " | 30 " | N.A. | 20 " |
| Platform Height | 9.5000 ' | 10 ' | 10 ' | 9.8000 ' |
| Platform Size | 45" x 26" | 60" x 25" | 27" x 20" | 45" x 22.5" |
| Power Source | 24V DC | 24V DC | 4 Sealed 210 amp-hr Maintenance Free (AGM) | 24V DC |
| Retracted Height | 68 " | 66 " | 57 " | 63 " |
| Stowed Height | N.A. | N.A. | 100" | N.A. |
| Weight | 1212 lbs | 1273 lbs | 1100 lbs | 1235 lbs |
- Safety Harness
- Wallet (Training Card)
Safety Information
It is very important that you are properly trained when using this equipment. You are required to wear all the manufacturer's recommended safety equipment, review all safe operation manuals and decals, and observe all safety precautions when utilizing tools and operating equipment.
Operator/User assumes all responsibility for the use, care, and inspection of this equipment and your Personal Protective Equipment.
