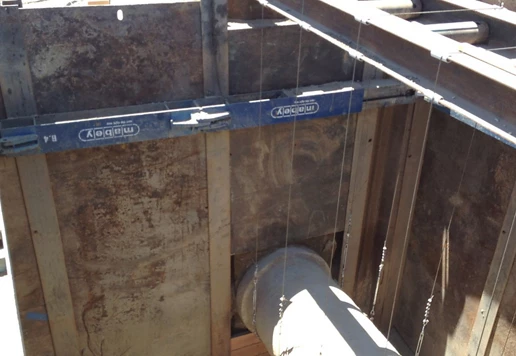

A pipe in a beam and plate system.

How Beam and Plate Systems Improve Safety on Construction Sites

In construction, beam and plate systems are crucial in supporting excavation work. These structural systems, made of sturdy steel, are known for their versatility and practicality on various projects. From city developments to important infrastructure tasks, they offer a reliable foundation that adapts easily to different excavation depths, soil conditions, and specific project needs. Let’s take a closer look at why beam and plate systems are essential in construction.

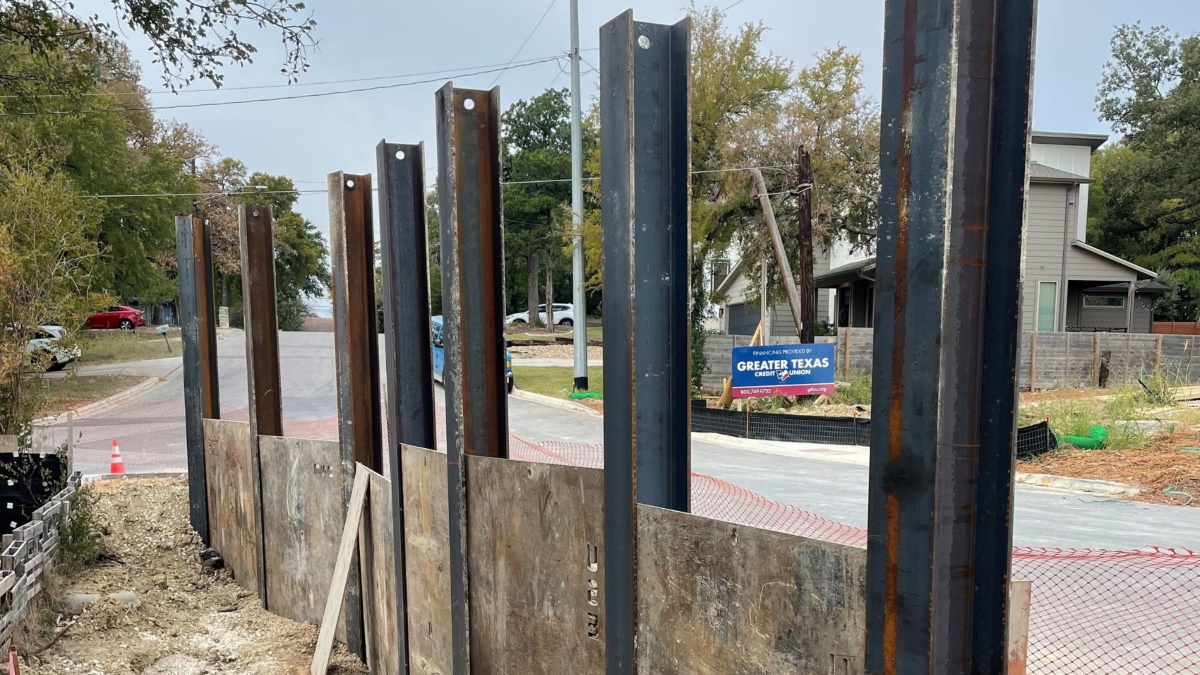

benefits-of-beam-plate-in-construction-inline-1-sbr-v1-03042024





Adaptability to Excavation Depth



The adaptability of beam and plate systems comes in handy when tackling the challenges of varying excavation depths. These systems effectively meet the demands of both shallow and deep excavations. The flexibility of beam plate shoring allows construction teams to effortlessly modify setups to suit changing excavation requirements.



Besides streamlining the construction process, this dynamic versatility optimizes resource utilization, aligning with the systems’ suitability for various wall types, trenches, or pit excavations. With typical depths ranging from 8 to 20 feet, these structural systems offer a reliable solution for projects with fluctuating depth needs.



Some key aspects of beam and plate systems in excavations include:



Diverse Configurations



These systems come in various configurations, including the robust H-beam and wide flange beam systems, and are crafted to cater to the unique demands of various excavation projects.



Versatility



Beam and plate systems adjust to diverse excavation depths and specific project requirements. Their compatibility extends to integration with other shoring systems, such as brace struts, providing added support and stability as needed.



Ease of Modification



Beam and plate systems are designed to undergo swift modifications, accommodating changes in excavation depth. Considerations like incorporating internal steel waler beams or cross braces are integrated into the system’s design, depending on the engineered plan.



Efficient Installation



With fewer structural joints and the convenience of offsite pre-construction, beam and plate systems contribute to accelerated project completion and reduced labor costs.





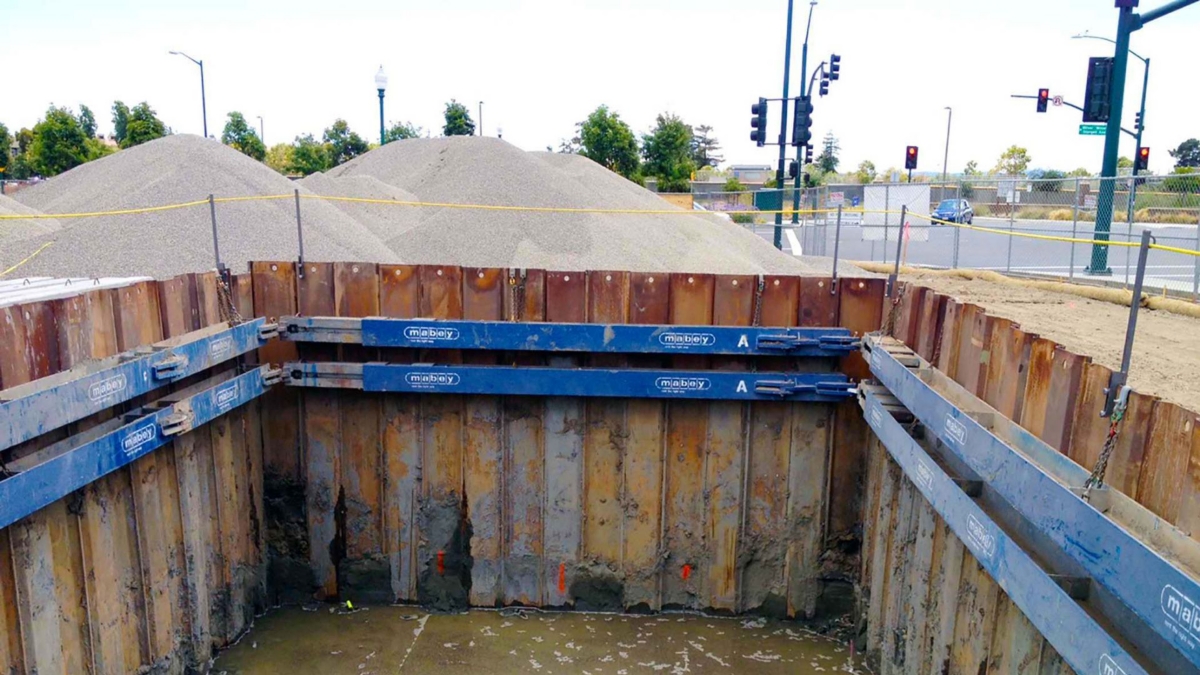

benefits-of-beam-plate-in-construction-inline-2-sbr-v1-03042024





Flexibility for Diverse Soil Conditions



Dealing with different soil conditions is much easier with beam and plate systems, thanks to the flexible and adjustable struts and various plate sizes. No matter how unpredictable the ground is, steel beam plates can be set up to match different soils and ensure a rock-solid foundation, making excavating safer.



Some customization options that make beam and plate shoring suitable for diverse soil conditions include:



Adjustable Struts



Crafted for versatility, beam and plate systems flex with struts that can be adjusted to match varying soil types and strengths, securing the system’s stability and effectiveness in different soil conditions.



Versatile Plate Sizes



Steel plates in beam and plate systems range from 12” to 14” in thickness and widths of 4’ or 8’. These steel beam plates combine with differently sized H-beams to create one to four-sided configurations suitable for various wall types, trenches, or pits.



Tailored Custom Components



Some systems offer custom H-beam and plate shoring, adjusting to soils for 1 to 4-sided designs, and creating free-span work areas for diverse excavation.



Engineered Lifting Devices



Shoring plates commonly come with specially designed lifting tools, like lifting rings, to make installation easy. This feature enables swift and efficient adjustments, ensuring the system works well in different soil conditions.



Accommodation of Project Requirements



Beam and plate systems easily adapt to various project requirements; their strength shines in supporting complex structures and shapes, providing the flexibility needed for diverse project layouts.



Here are specific benefits of beam and plate systems when it comes to meeting diverse project needs.



Straight or Curved Excavations



In straight or curved excavations, beam and plate shoring systems, like the H-beam and steel plate configurations, offer flexibility. They create spacious work areas adaptable for one to four-sided applications and cater to different excavation shapes and layouts. The flexibility to adjust the plates allows these systems to easily fit different shapes in excavations, making them well-suited for various projects.



Support for Complex Structures and Geometries



Shoring plates or beam and plate systems are designed to give strong support for complex structures and shapes. They can stay in the ground for long, keeping everyone and nearby structures safe during excavations. These steel plate beam systems can be changed to fit different soil types and strengths, making sure they stay stable and effective in different conditions. This makes them great for supporting complicated and tough excavation projects.



Accessories and Equipment



Different add-ons and tools are available to meet special needs for beam and plate systems. These could include struts you can adjust, plates in different sizes, and special components like H-beams and steel plates.



Additionally, lifting tools like lifting rings in shoring plates make installation and adjustments much easier. These accessories and equipment make beam and plate systems even better for different excavation projects.



Additional Advantages



Beam and plate shoring systems offer multiple safety benefits by ensuring stability and reducing the risk of cave-ins. Shoring plate or beam and plate systems fortify trench walls, preventing collapses during excavations, which boosts worker safety and minimizes harm to pedestrians and nearby structures.



Also, the minimal vibration from beam and plate systems reduces the potential for damage to nearby structures, providing a secure environment for on-site workers.



In comparison to alternative shoring methods, beam and plate systems stand out for their easy installation and removal, providing the following advantages:



  • Fewer structural joints for streamlined processes
  • Offsite pre-construction for faster project completion
  • Reduced labor costs, minimizing the risk of worker injuries



Additionally, these systems are cost-effective for diverse excavation projects and are renowned for their durability, offering benefits such as:



  • Extended usage in the ground for enhanced safety during excavations
  • Adjustable steel plates and beams, allowing for reuse in different projects
  • Reduced waste and a lesser environmental impact



Conclusion



Shoring beam and plate systems are adaptable and efficient shoring solutions, offering enhanced safety, ease of installation, and cost-effectiveness for various excavation projects.



If you have an upcoming construction project, consider the versatility and benefits of beam and plate systems to ensure a smooth and secure excavation process.
