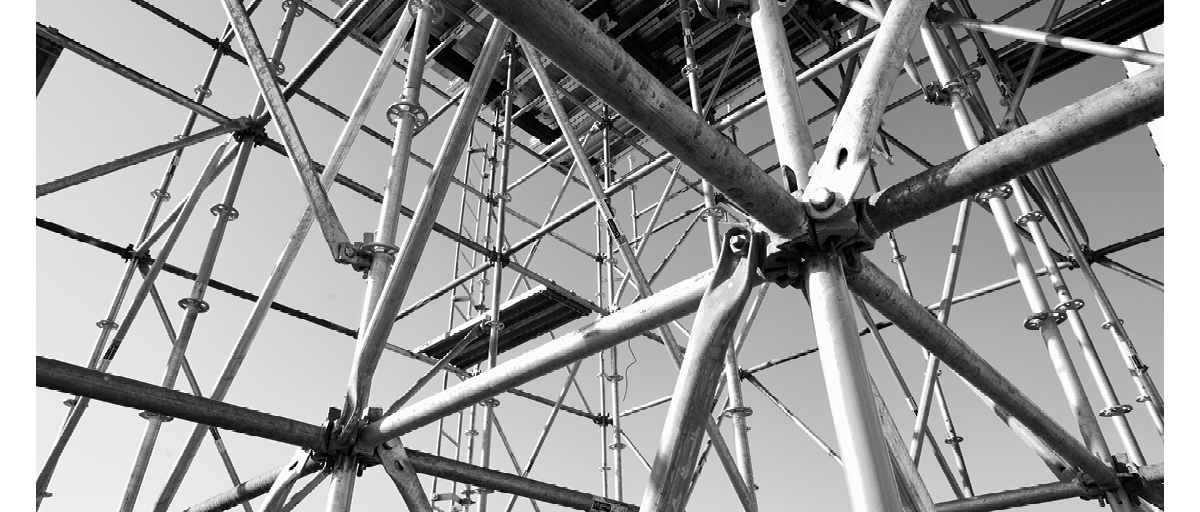

Large scaffolding system with guardrails.

The Importance of Guardrail Systems in Scaffolding Safety

Introduction to Guardrail Systems


Guardrails are protective, stationary structures that prevent workers from falling off a working platform. Guardrail systems are standard on construction sites and may resemble a gate or safety rail.

According to health and safety regulations, these safety gates are required, and users of scaffolds and employers must ensure these rails are correctly installed for protection.


The Benefits of Guardrail Systems in Scaffolding Safety


What are the advantages of using guardrails on a scaffolding system for greater safety? They offer increased stability for various applications, whether you install rails on a flat roof for roof fall protection or as a parapet on a terrace or balcony. Guardrails are your first line of defense against falling from height. OSHA requires that scaffold 10’ or higher off the ground or base floor be guard railed on all open sides 14” or more from solid vertical surfaces.

There are several benefits to consider when you use guardrail systems on your scaffolding structure:

  • They meet the OSHA regulations, which require installation on worksites.
  • Guardrails offer enhanced worker protection from accidents and injury, specifically in areas where edge height poses a risk and fall protection is needed.
  • They improve safety for workers on working platforms, which is mandatory for structures or openings exposing fall heights over 10’.
  • Guardrails are portable, convenient, and can be installed quickly as an effective roof fall protection system. They are ideal for projects with time constraints.
  • They offer additional support as a roof guardrail system and other equipment used to move around worksites. These include ladders, self-closing safety gates, toe boards, and other equipment that provides a safer environment for roof safety and parapet walls.
  • Guardrails do not penetrate or damage any scaffolding, structural beams, roof membrane, or other areas of a construction project.

Guardrail systems are a significant component of a personal fall arrest system, which works effectively with personal protection equipment, such as head protection and hand protection, so workers can access all site areas, including confined spaces, with safety measures in place.


Choosing the Right Guardrail System for Your Scaffolding


When you select the right guardrail system for your scaffold, it’s essential to consider various project characteristics, including height and weight requirements, the job site conditions, the environment, the type of work you’ll need to be done, and the access levels.

Standard guardrails systems can be affixed to flooring, or a similar platform surface, with base plates, though you’ll find that variations to this diversified fall protection structure should be considered for your application, to ensure a safe, stable, and efficient working environment:

  • Is the application located in a worker working at height, which requires more protection? This may include guardrails for walkways or around openings in floors.
  • The type of work, the height of the scaffold, and whether the area to be accessed is confined or difficult to reach.
  • The regulations for protecting workers may determine the type of guardrails you’ll need and how quickly they can be assembled and installed.

It’s essential to have an experienced, knowledgeable installer on site to ensure your guardrails are installed safely to meet the regulations and prevent breakage, accidents, or injuries.


Guardrail System Components and Design


It’s essential to get familiar with the components of a guardrail system and their various types of design. Three main parts create a guardrail: the vertical posts, mid rails, and the top rails. All these components must be adequately spaced, with the correct height requirements, so that they can provide fall protection, as required.

Guardrails must withstand a force of at least two hundred pounds, in any direction, along the top rail. Other parts of guardrail systems, such as mesh, screens, solid panels, and mid-rails, must similarly withstand pressure or force of at least one hundred fifty pounds. All rails must have a smooth surface to protect personnel from injury from getting caught on a jagged edge or from punctures.


Proper Installation and Maintenance of Guardrail Systems


It’s essential to install your guardrail systems correctly to provide safety in compliance with health and safety regulations.

There are specific guidelines that must be followed so that they remain safe and secure for the duration of the project:

  • Top rails and mid-rails must not overhang at the posts, which can pose a hazard to workers.
  • Certain materials, such as plastic and steel banding, are prohibited on mid or top rails.
  • Rails installed near hoist areas or open holes must include a removable section to control access for greater protection.
  • When guardrails are installed on ramps, runways, and other specific areas or structures, specific materials must be used to reinforce their strength and meet safety regulations.




At Sunbelt Rentals, you’ll discover a wide range of scaffolding and guardrail systems, including equipment, tools, and materials for your construction site or application. Our team of experts can provide a quote for equipment rental, setup, installation, and other services, to ensure your worksite is safe, efficient, and accessible for the duration of your development.
