CAT CLASS:
0460015

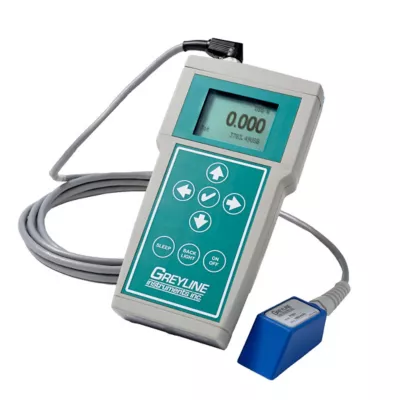

Doppler Flow Meter
Overview
A portable flow meter which allows you to troubleshoot and monitor a full pipe from the outside. This unit examines the pipes by searching for dirty or aerated liquids by measuring the acoustic pulse of the water flow. Each unit includes carrying case, mounting kit, and strap-on sensor.
Specifications
Products are subject to availability.
| Make | Greyline |
| Model | PDFM 5.0 |
| Flow Range | ± 0.1 to 40 ft/sec |
| Outputs | 4-20mA |
| Pipe Size | 1/2" to 180" |
| Power Input | 100- 240VAC 50/60Hz input |
