CAT CLASS:
1551120

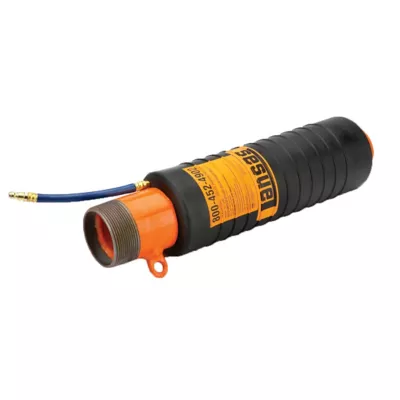

6" x 10" Sewer Plug w/ 4" Flow Through
Overview
Sewer plugs are used to block off pipelines during bypass, rehabilitation and maintenance applications. The plug is positioned inside the pipeline and then expanded to fit using compressed air from an outside source. Plug accommodates pipeline with 6’’ to 10’’ diameter. Made with flow-thru feature to allow line fluids or inject chemicals into the line with 4’’ diameter.
Specifications
Products are subject to availability.
| Model | 070-610-1 |
| Bypass Flow-Thru | 3" |
| Diameter | 5" |
| Length | 1.6667 ' |
| Max Back/Test | 15 PSI |
| Max Pipe Dia | 10.25" |
| Min Pipe Dia | 5.7" |
| Pipe Range | 6" - 10" |
| Required Inflation | 30 PSI |
| Type | Flow-Thru |
| Weight | 11 lbs |
Safety information
Safety Requirements
- Eye Protection
- Safety Shoes
- Gloves
