CAT CLASS: 0450330

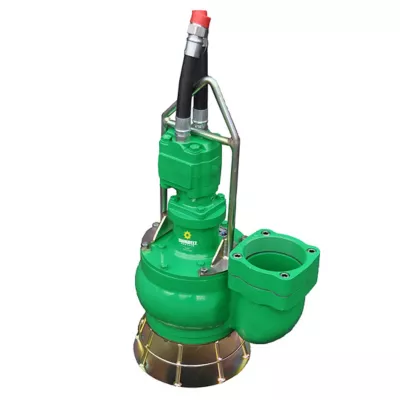

6" Hydraulic Pump Head 60 HP

Overview

Submersible pumps are ideal for applications requiring a suction lift greater than 25' and with high solids concentration. This pump head is the trash/sludge type, which is ideal for pumping water containing mud, sticks and other foreign materials. These units have a discharge of 6" and a matching power unit of 60HP.

Specifications

Products are subject to availability.

Make Gulf Atlantic Hydratech
Model 2-37 x 6-30 S6T
Discharge 6" 6"
Dry Weight N.A. 220 lbs (AL) / 330 lbs (DI)
Hydraulic Flow 45 GPM 28 GPM
Matching Power Unit 60 HP 60 HP
Max GPM 1900 16000
Max Head 82 ' 125 '
Max Solids 3.5" 5"
Type Trash/Sludge Trash/Sludge
Weight 205 lbs N.A.

Safety information

Safety Requirements
  • Eye Protection
  • Gloves
