CAT CLASS:
0410160

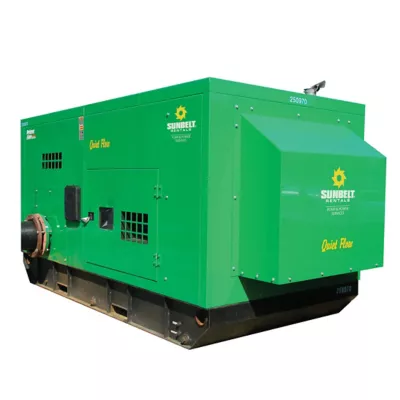

6" Diesel Automatic-Priming Silent Trash Pump
Overview
Our 6” standard diesel trash pumps are ideal for a number of applications, including sewer bypass work, plant shutdowns, dewatering flooded areas and drought relief applications. Featuring continuously operating priming systems, our standard silent diesel trash pumps can accommodate extended periods of dry running.
Specifications
Products are subject to availability.
| Consump# Full Load | 3.1 GPH | 3.1 GPH |
| Diesel Engine | N.A. | John Deere 4045D |
| Dry Weight | 4,212 lbs. | N.A. |
| Engine | John Deere 76 HP | N.A. |
| HP | N.A. | 76 |
| Max GPM | 2280 | 2280 |
| Max Head | 158 ' | 158 ' |
| Max Solids | N.A. | 3" |
| Mounting Type | N.A. | Skid1 |
| Onboard Fuel Cap | 87 gal. | 87 gal. |
| Overall Dimensions | 108"L x 48"W x 74"H | 108"L x 48"W x 74"H |
| Run Time Full Load | 28.1 hrs. | 28.1 hrs. |
| Suction x Discharge | 6" x 6" | 6" x 6" |
| Type | 6" QF | 6" QF |
| Weight_Wet/Dry | N.A. | 4,876/4,212 lbs. |
Safety information
Safety Requirements
- Eye Protection
- Gloves
