CAT CLASS:
1551145

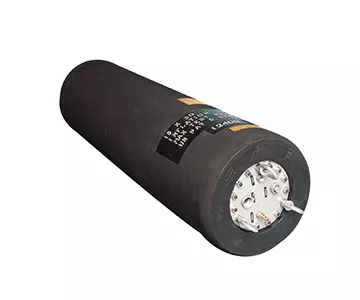

15" x 30" Sewer Plug
Overview
Sewer plugs are used to block off pipelines during bypass, rehabilitation and maintenance applications. The plug is positioned inside the pipeline and then expanded to fit using compressed air from an outside source. Plug accommodates pipeline with 15’’ to 30’’ diameter. Made with domehead feature to inflate and expanded to fill pipeline.
Specifications
Products are subject to availability.
Model | 060-1530-1 |
Bypass Flow-Thru | NA |
Diameter | 13.7" |
Length | 4.5833 ' |
Max Back/Test | 8 PSI |
Max Pipe Dia | 30.25" |
Min Pipe Dia | 14" |
Pipe Range | 15" - 30" |
Required Inflation | 20 PSI |
Type | Domehead |
Weight | 49 lbs |
Safety information
Safety Requirements
- Eye Protection
- Safety Shoes
- Gloves
