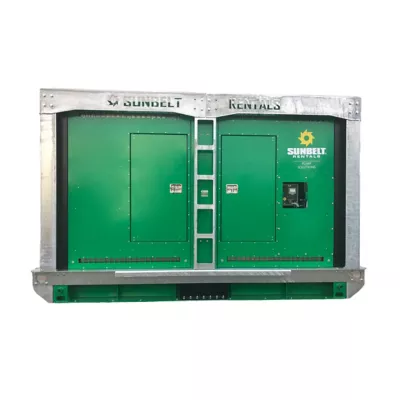

12" Diesel Automatic-Priming Silent Pump

Overview

An innovation in the pumping world, our 12” silenced diesel trash pumps have set an industry standard in both performance and environmental protection. These units boast outstanding sound attenuation, making them perfect for any application where noise is a consideration. They’re also self-contained, protecting against any possible engine, fuel or coolant leaks.

Specifications

Products are subject to availability.

Consump# Full Load	7.4 GPH	6.2 GPH	10.5 GPH
Diesel Engine	N.A.	John Deere 6081H	John Deere 6081H
Dry Weight	9,200 lbs.	N.A.	N.A.
Engine	John Deere 150 HP	N.A.	N.A.
HP	N.A.	185	250
Max GPM	6320	6500	8500
Max Head	104 '	112 '	200 '
Max Solids	N.A.	3"	3"
Mounting Type	N.A.	Skid	Skid
Onboard Fuel Cap	174 gal.	175 gal.	300 gal.
Overall Dimensions	151"L x 77"W x 87"H	156"L x 71"W x 103"H	154"L x 70"W x 80"H
Run Time Full Load	23.6 hrs.	28.2 hrs.	28.6 hrs.
Suction x Discharge	12" x 12" Std.	12" x 12" Std.	12" x 12" HV
Type	12" QF2	12" QF	12" HV QF
Weight_Wet/Dry	N.A.	10,215/9,000 lbs.	13,100/11,000 lbs.

Safety information

Safety Requirements

Eye Protection

Gloves
