Resistive Load Bank 100 kW 240/480V Local Control

Overview

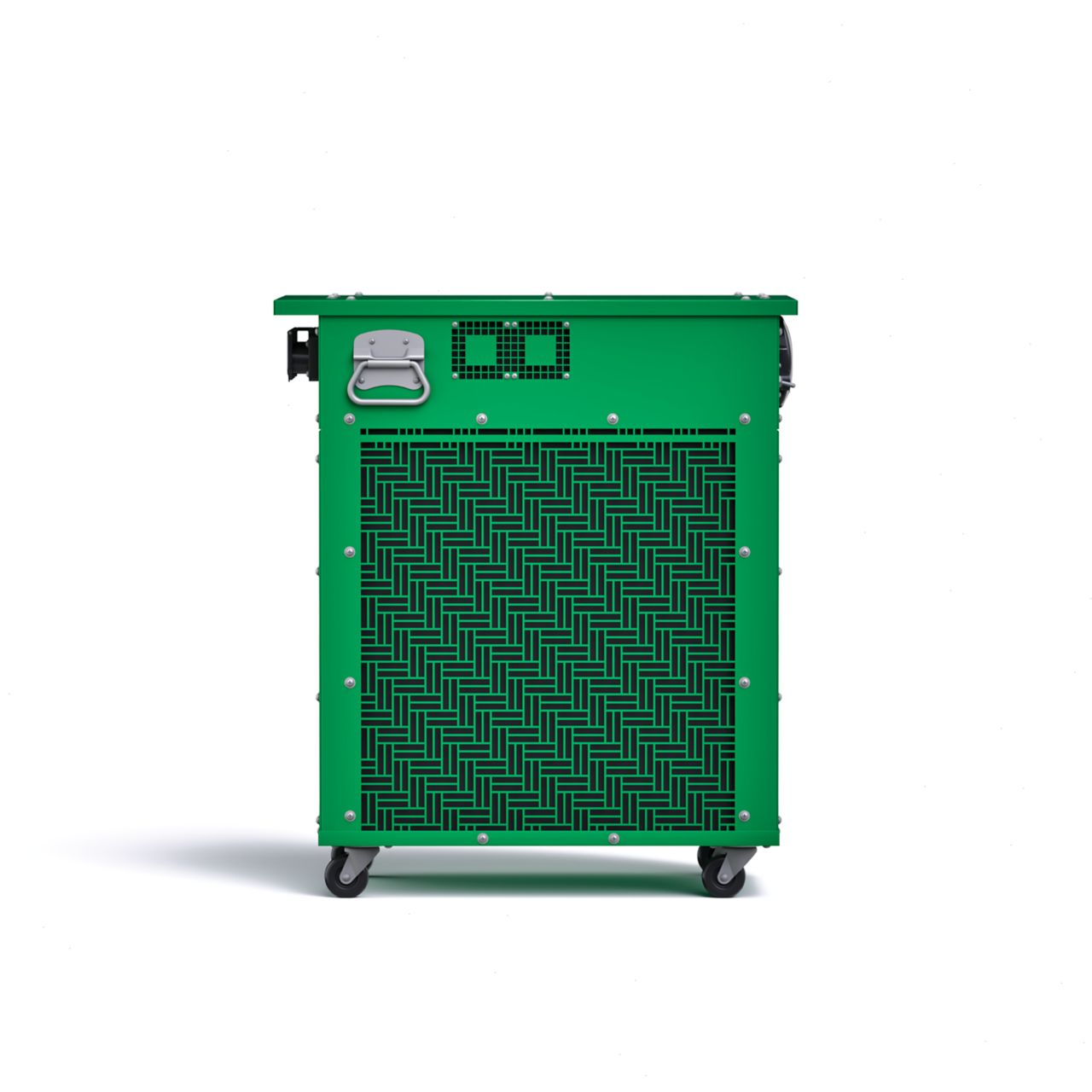

Our 100KW A/C resistive load banks offer consistent, controlled electrical loads to field test power sources. The portable design allows you to test multiple sites. This compact, lightweight indoor enclosure provides up to 100 KW resistive load at 480 VAC or 240 VAC, 3 phase, 60 Hz with digital meters for measurement.

Specifications

Products are subject to availability.

Make	Avtron	Mosebach
Model	LPH100	X100
120V	X - Single Phase	X - Single Phase
208V	X - 3 Phase	X - 3 Phase
240V	X - Single and 3 Phase	X - Single and 3 Phase
480V	X - 3 Phase	X - 3 Phase
Capacity	100 kW*	100 kW*
Hertz	60	60
Load Step	5 kW	5 kW
Overall Dimensions	25"L x 16"W x 29"H	19"L x 17"W x 32"H
Weight	105 lbs	110 lbs

Safety information

Safety Requirements

Gloves
