CAT CLASS: 1150210

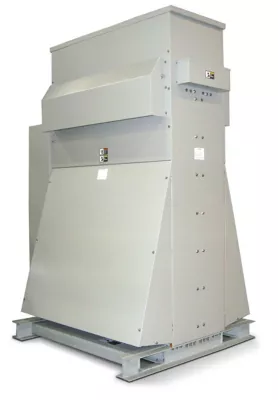

Inductive Load Bank 225 kVAR

Overview

This is a reactive load bank designed to be used in conjunction with a resistive load bank to provide loading of AC power sources at leass than unity power factor. The load bank is suitable for indoor and outdoor installation and is designed for continuous operation. Reactive kVAR matches resistive kW at 0.8 power factor. It's available in balanced 3-phase loads of 150, 188, 191, 225, 228, 300 and 375 kVAR at 240 or 480 volts. These units are available with different size load steps, depending on customer requirements.

Specifications

Products are subject to availability.

Make Avtron
Model K841
240V X - 3 Phase
480V X - 3 Phase
Capacity 225 kVAR
Hertz 60
Load Step 3.75 kVAR
Overall Dimensions 54"L x 52"W x 92"H
Weight 4800 lbs

Safety information

Safety Requirements
  • Gloves
