CAT CLASS:
0100230

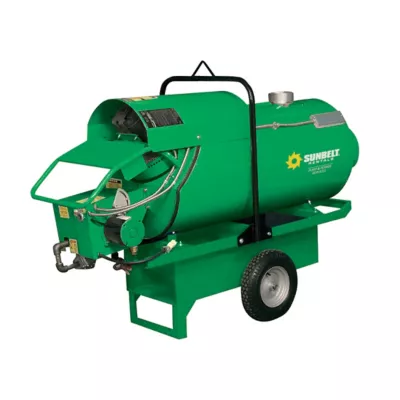

500-599K BTU Kerosene/Oil Indirect Fired Torpedo Heater
Overview
The 500-599K BTU indirect-fired heaters provide clean, dry, odorless heat. They also include air outlets that accommodate flexible ducting, which allows placing the heaters at a safe distance from special event tents and other structures. The high volume blowers circulate the heated air and can heat areas of up to 11,600 square feet depending on the model. They feature a max airflow of up to 3,100 CFM, with a max BTU of between 420,000 and 500,000. Built in thermostats regulate the heaters operation.
Specifications
Products are subject to availability.
| Make | ICE |
| Model | IDF 500 Oil |
| Fuel Consumption | 3.6 gal./hr. |
| Fuel Tank | 40 gal. |
| Heating Area | 11,600 sq. ft.* |
| Max Airflow | 3,100 CFM |
| Max BTU | 500,000 |
| Return Duct (Dia/Max Length) | NA |
| Run Time | 11.1 hrs. |
| Supply Duct (Dia/Max Length) | 2 x 12" / 24' |
| Voltage | 115V |
| Weight | 580 lbs |
Safety information
Safety Requirements
- Gloves
