CAT CLASS: 1050420

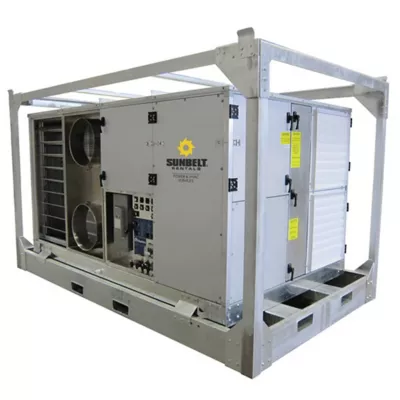

5,000 CFM Desiccant Dehumidifier Tri-Fuel

Overview

Desiccant dehumidifiers utilize a solid desiccant rotor that is slowly rotated by a drive motor. As the rotor turns, this 5,000 CFM unit produces very dry discharge air with extremely low relative humidity, which is ducted to the area being treated to facilitate drying or other moisture control applications.

Specifications

Products are subject to availability.

Make Concepts
Model MS5000TRI
Air Volume 5,000-6,000
Electric Load_(Electric Reactivation)_230V, 1ø NA
Electric Load_(Electric Reactivation)_460V, 3ø 138A/120 kW1
Electric Load_Gas Reactivation)_460V, 3ø 13A/20 kW1
Fuel Consumption _(Natural Gas)_Max Usage 400 cu. ft./hr.
Fuel Consumption_(Propane)_Max Usage 4.4 gal./hr.
Moisture Removal_40°F / 80% RH 216 gal./day
Moisture Removal_55°F / 80% RH 331 gal./day
Moisture Removal_80°F / 60% RH 392 gal./day
Overall Dimensions 170"L x 49"W x 79"H
Static Pressure 5"
Type Reactivation Tri-Fuel
Weight 5000 lbs

Safety information

Safety Requirements
  • Eye Protection
  • Gloves
