CAT CLASS:
1080225

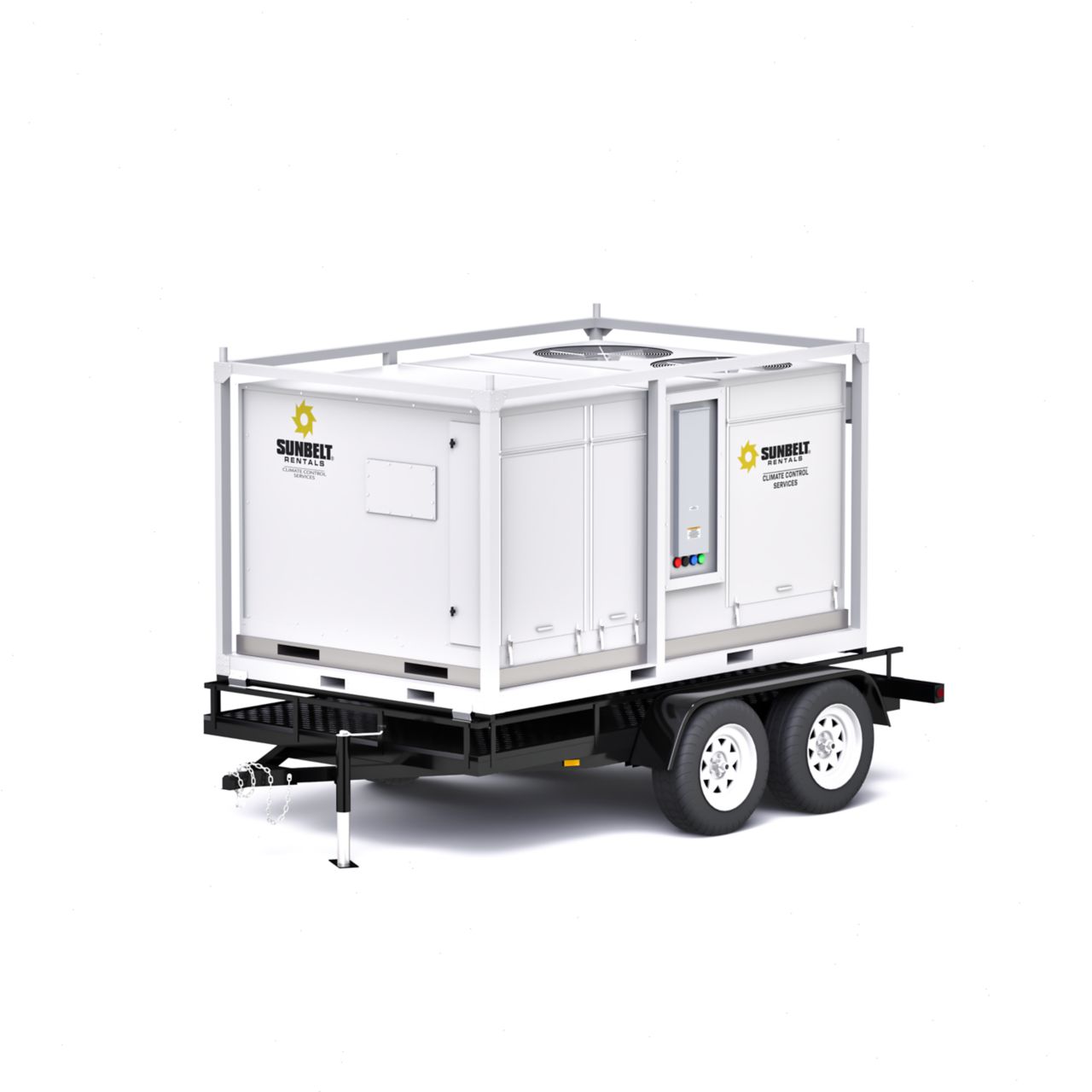

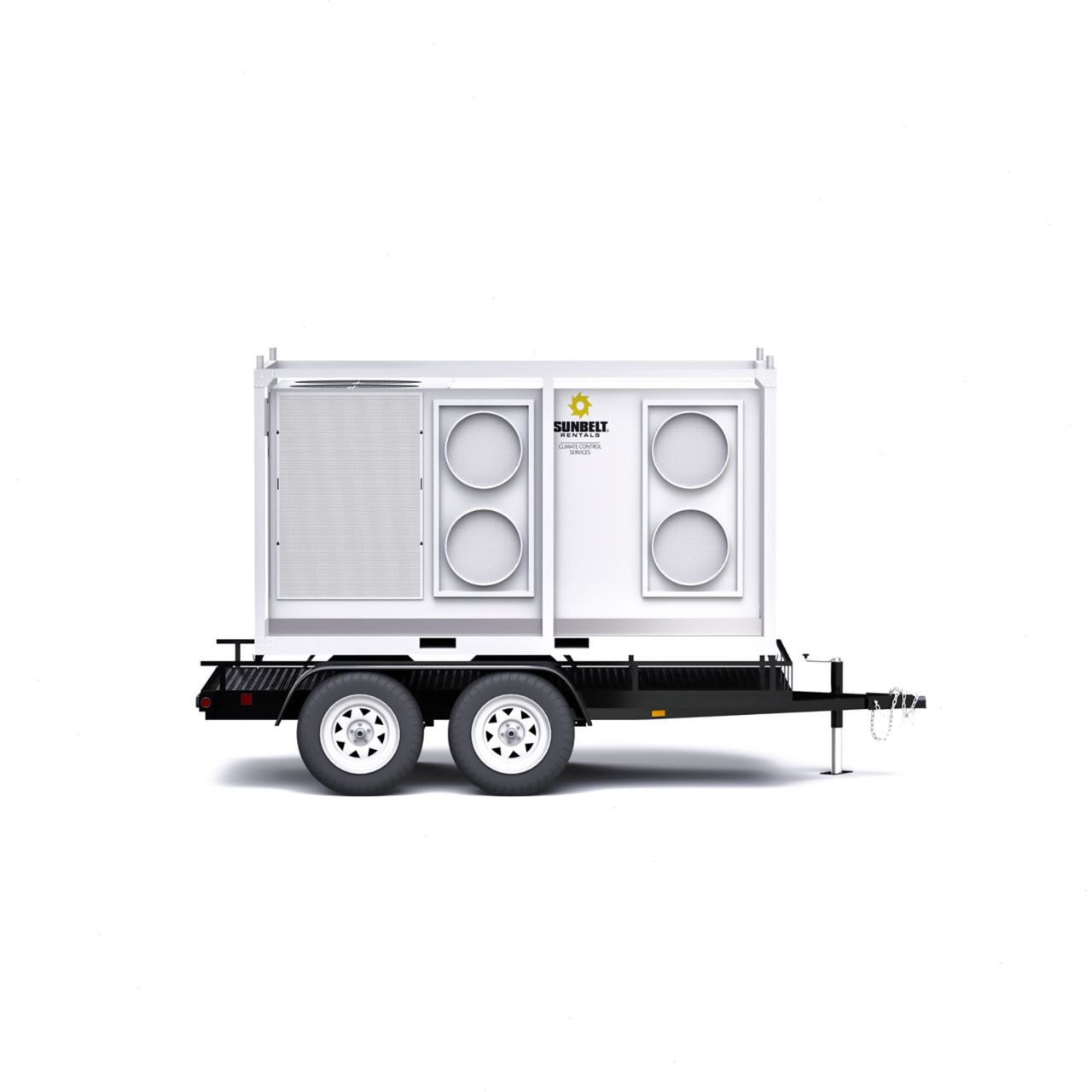

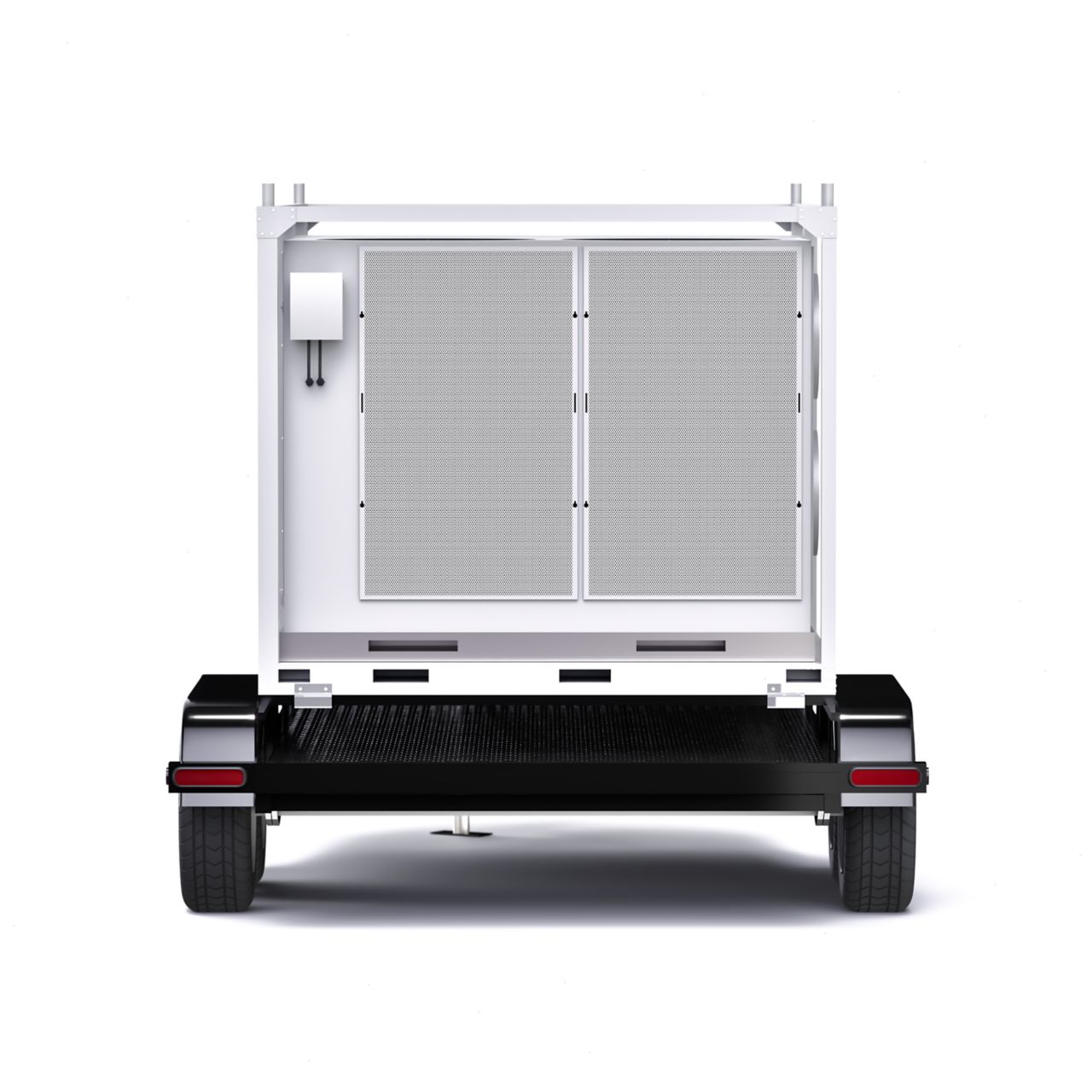

25 Ton Air Conditioner 480V 3 PH
Overview
Provides the cooling power for large area cooling and dehumidifying. This 25 Ton Air Conditioner unit has a cooling area of 5,000/10,000 sq. ft. These units have a rugged, weatherproof design for outdoor installations. All models include an electrical disconnect switch and utilize 20" flexible duct for supply and return air.
Specifications
Products are subject to availability.
| Make | MobileCool |
| Model | MOB-250S |
| Amp Rating | 53 |
| Capacity | 25 ton |
| Cooling Area | 5,000/10,000 sq. ft. |
| Dimensions | 92"L x 128"W x 63"H |
| Max Airflow | 10,000 CFM |
| Return Duct Dia/Max Length | 2 x 20"/50' |
| Supply Duct Dia/Max Length | 2 x 20"/50' |
| Voltage | 460V, 3ø |
| Weight | 3200 lbs |
Safety information
Safety Requirements
- Eye Protection
- Gloves
