CAT CLASS:
1501120

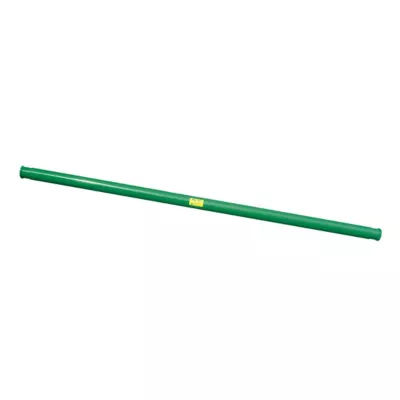

Spindle For Cable Reel Jack Stands
Overview
Our Spindle for Cable Reel Jack Stands feature self-lubricating roller bearings with matching spindles. They are ideal for feeding large cable reels during cable installations. Both screw and ratchet-types are available, each featuring roller bearing spindle mounts. These models has a diameter ranging from 2-3/8" to 3-1/2". Capacity ranging from 5,000-7,500 lbs. Please use gloves while using this model.
Specifications
Products are subject to availability.
| Make | Greenlee | Greenlee | Greenlee | Sumner | Sumner | Sumner |
| Model | 647 | 657 | 684 | 61 | 71 | 81 |
| Capacity | 5,000 lbs. | 7,500 lbs. | 5,000 lbs. | 5,000 lbs. | 5,000 lbs. | 7,500 lbs. |
| Diameter | 2-3/8" | 3-1/2" | 2-3/8" | 2-3/8" | 2-3/8" | 3-1/2" |
| Length | 62 " | 100 " | 76 " | 62 " | 76 " | 100 " |
| Matching Stand | 687 | 656 | 683 | 60 | 70 | 80 |
| Type | Spindle | Spindle | Spindle | Spindle | Spindle | Spindle |
| Weight | 42 lbs | 124 lbs | 50 lbs | 39 lbs | 47 lbs | 119 lbs |
Safety information
Safety Requirements
- Gloves
