CAT CLASS:
0440097

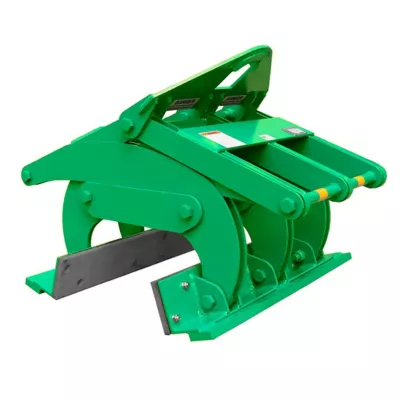

Jersey Wall Clamp
Overview
Jersey wall clamp is an attachment for variety of heavy machinery. Enables lifting of heavy concrete walls with a capacity of 16,000 lbs. Ideal for handling walls with the length of 20 to 30 feet. Wall clamp has a scissor action that allows operator to easy unload walls from trucks into position.
Specifications
Products are subject to availability.
| Make | Kenco | Kenco | Kenco |
| Model | KL12000 | KL16000 | KL9000 |
| Capacity | 12,000 lbs | 16,000 lbs | 9,000 lbs |
| Grip Range | 6" to 12" | 6" to 12" | 6" to 12" |
| Length of Wall Being Handled | 16'-20' | 20'-30' | 10'-16' |
| Pad Sizes | 6" x 36" | 6" x 36" | 6" x 24" |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
