CAT CLASS:
0010680

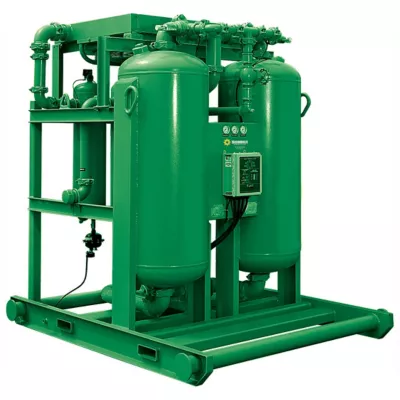

1,600 CFM Aftercooler/Dryer/Filter Package
Overview
The 1,000 CFM aftercooler/dryer/filter with a maximum pressure of 250 PSI is a complete air treatment system in one package. The aftercooler with an air-fan driven motor lowers temperature of air leaving the compressor to within 7.5 degrees Fahrenheit of ambient temperature and eliminates 80% of water. The prefilter 1 is a separator/filter that removes bulk liquids and filters the air. While the prefilter 2 is an ultra-high efficiency coalescing type oil removal filter which removes fine oil droplets (aerosols) and solid particles. In addition, the pressure-swing regenerative desiccant dryer produces extra dry air to minimize purge air requirements. Last, the afterfilter removes desiccant fines and allows long element life.
Specifications
Products are subject to availability.
| Make | Sullivan-Palatek |
| Model | SPS-1600RS |
| Height | 104 " |
| Length | 96" |
| Outlet Dew Point | -40ºF |
| Weight | 4,918 lbs |
| Width | 73 " |
Safety information
Safety Requirements
- Eye Protection
- Gloves
