CAT CLASS:
0010220

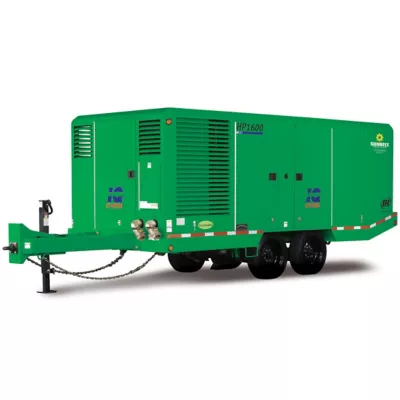

1,600 CFM 150 PSI Instrument Quality Diesel Air Compressor
Overview
Rated for continuous-duty operation, the IQ air compressor provides clean, reduced moisture with no condensate waste. Delivering heavy-duty dependability and automatic features, this 1,600 CFM 150 PSI diesel air compressor has an exclusive cool-box to help prolong component life, and a lockable valve system allows the unit to run in instrument-quality or standard rotary screw mode. The automatic shutdown protection and indicator lights for low engine oil pressure, high engine coolant temperature, and low fuel level are one of the many standard features included. The integral after cooler discharges air at only 20 degrees Fahrenheit above ambient. In addition, this compressor is complete with electric brakes with towing lights, side markers, and reflectors.
Specifications
Products are subject to availability.
| Make | Atlas Copco | Doosan | Sullivan-Palatek |
| Model | XAS1800JDT4F | HP1600WCU IQ | D1600PH |
| CFM | 1600 | 1600 | 1600 |
| Consump Full Load | 23.0 GPH | 22.0 GPH | 24.0 GPH |
| HP | 525 | 560 | 535 |
| Onboard Fuel Cap | 240 gal. | 230 gal. | 200 gal. |
| Overall Dimensions | 20'L x 88"W x 101"H | 24'L x 90"W x 101"H | 20'L x 90"W x 94"H |
| Pressure Range | 90-225 PSI | 90-150 PSI | 90-150 PSI |
| Rated Pressure | 150 PSI | 150 PSI | 150 PSI |
| Run Time Full Load | 10 HOUR | 10 HOUR | 8 HOUR |
| Weight | 18300 lbs | 18300 lbs | 19000 lbs |
Safety information
Safety Requirements
- Eye Protection
- Hearing Protection
- Gloves
