CAT CLASS:
0020040

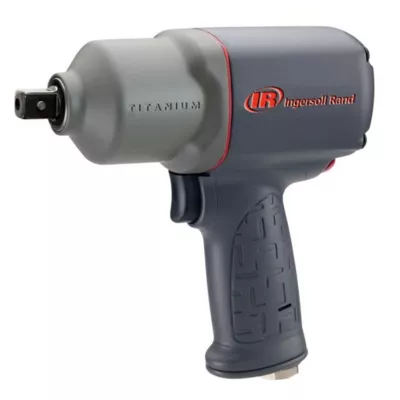

1/2" Air Impact Wrench
Overview
Air impact wrenches provide high-speed bolt torquing in industrial and construction applications. Factors to consider when selecting an impact wrench for a specific application are the diameter of the bolts being tightened, the approximate torque requirement, and the intended use frequency. The 1/2" Air Impact Wrench has a maximum of 9,500 RPM with 1,300 impacts per minute. Additionally, impact sockets are also available for rent.
Specifications
Products are subject to availability.
| Make | Ingersoll | Ingersoll | Universal Tool |
| Model | 2135PT1 | 2707P1 | UT8160P |
| Air Requirement | 24 CFM @ 90 PSI | 26 CFM @ 90 PSI | 29 CFM @ 90 PSI |
| Drive/Style | 1/2" square/pistol | 1/2" square/pistol | 1/2" square/pistol |
| Impacts/Min | 1250 | 1300 | 1250 |
| Max Torque | 600 ft. lbs. | 450 ft. lbs. | 725 ft. lbs. |
| No-Load Speed | 9,500 RPM | 7,750 RPM | 9,000 RPM |
| Weight | 5 lbs | 6 lbs | 4.2000 lbs |
Safety information
Safety Requirements
- Eye Protection
- Hearing Protection
- Gloves
