CAT CLASS:
0600410

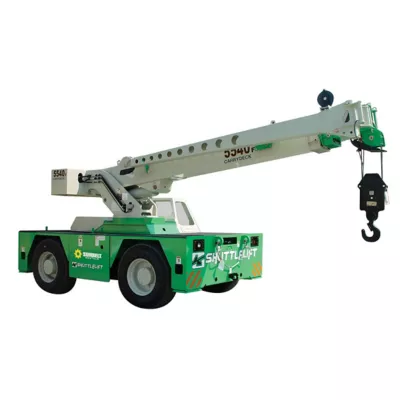

15 Ton Carry Deck Crane Gas/Propane
Overview
This 15-ton gas/propane carry deck crane is compact with a low-profile design that clears overhead obstructions and maneuvers in tight spaces. It's 4-wheel steering option allows for a very tight turning radius for quick positioning in constrained spaces. Further, this pick and carry deck crane has a large, self-loading cargo deck ideal for transporting heavy objects on the job. The maximum carry capacity is 16,200 lbs and the horizontal reach is 37’/51’. This unit is adaptable for a wide variety of applications including industrial and manufacturing plants, equipment maintenance & repair, industrial & mechanical contractors, as well as general construction. Altogether, the carry deck crane is an ideal machine for your heavy lifting in constrained environments.
Specifications
Products are subject to availability.
Make | Broderson | Shuttlelift |
Model | IC-200-2C DF | 5540 DF |
Capacity (Deck) | 17,000 lbs.* | 20,000 lbs.* |
Capacity (Outriggers) | 30,000 lbs.* | 30,000 lbs.* |
Capacity (Pick/Carry) | 16,200 lbs.* | 16,000 lbs.* |
Horizontal Reach | 36'/51'** | 37'/51'** |
Overall Ht/Width | 95"/96" | 96"/94" |
Power Source | 110 HP Dual Fuel | 80 HP Diesel |
Sheave Height | 45'/60'** | 27'/61'** |
Weight | 27640 lbs | 26500 lbs |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
