Air Handlers and Chillers

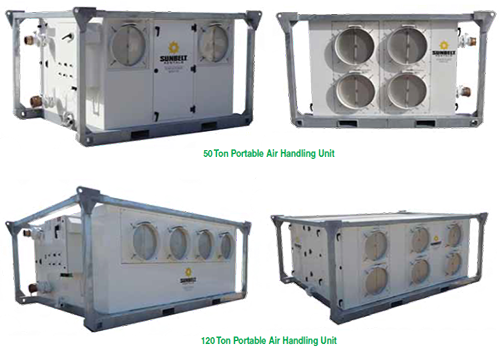

AIR HANDLING UNITS are designed and constructed for ease of operation and mobility as well as the rigors of everyday use. Our units are mounted on a structural tubular steel frame that incorporates tube slots for forklift handling. Our units also include a certified structural lifting/stacking protective cage for optional overhead positioning with an onsite crane for hard to reach site setup locations. The units are ready for operation with minimal setup of two (2) 4” hose connections and (4) Cam-Lock power cables.
  • Hot dip galvanized structural lifting/stacking skid and integrated tie-downs
  • Chilled water temperature and pressure indication (Inlet & Outlet)
  • Integrated control panel with Cam-Lock power connections, circuit breaker, magnetic starter, potentiometer for VFD control, OFF/ Auto two position switch, Power On indicator light and Phase Incorrect indicator light
Hot Quote

The following PDF files are large.
Download times will vary.

PAHH-50TC PAHH-120TC
Specifications PAHH-50TC PAHH-120TC
Capacity
50 tons 120 tons
CFM
6,250 15,000
Duct Size 20" 20"
# of Supply Ducts 2 4
# of Return Ducts 4 6
Voltage 460V 460V
Dimensions 100"L X 83"W X 59"H 144"L X 101"W X 64"H
Weight 3,250 lbs 4,350 lbs
Cat-Class 107-1050 107-1120
ETL UL All specifications are subject to change without notice.
PCHH-70TD PCHH-100TD PCHH-150TD PCHH-200TD
Specifications PCHH-70TD PCHH-100TD PCHH-150TD PCHH-200TD
Capacity
70 tons 100 tons 150 tons 200 tons
Pump Size
200gpm 300gpm 500gpm 600gpm
Connections (Inlet & Outlet 4" Dixon Quick Connect 4" Dixon Quick Connect 6" Flanged 6" Flanged
Voltage 460V 460V 460V 460V
Dimensions 177"L x 100"W x 102"H 205"L x 100"W x 102"H 255"L x 100"W x 102"H 292"L x 100"W x 102"H
Weight 7,950 lbs 9,250 lbs 12,250 lbs 18,500 lbs
Cat-Class 107-1270 107-1300 107-1350 107-1520
ETL UL All specifications are subject to change without notice.

PORTABLE AIR-COOLED CHILLER PACKAGES offer flexible temporary fluid cooling solutions using equipment that has been designed and engineered to be self contained systems for Commercial and Industrial air conditioning and process cooling applications. These packages have also been designed and constructed for ease of operation and mobility, as well as the rigors of everyday use. Our package is mounted on a structural tubular steel frame that incorporates tube slots for forklift handling. Our package also includes a certified structural lifting/stacking protective cage for optional overhead positioning with an onsite crane for hard to reach site setup locations.

  • Freeze protection to -20F with 3/4” foam insulated evaporator & protective aluminum jacketing, chilled water barrel heaters, external thermostat control for heaters and refrigerant isolation valves (discharge valve)
  • Dual circuit machine for staging and efficiency
  • UL/cUL listed to US and Canadian safety standard
  • ASHRAE 90.1 compliance, ARI Standard 550/590, ANSI/NFPA Standard 70
  • Phase monitor and phase fail indicator light
  • Master On/Off switch
  • Integrated main power wiring with Cam-Lock electrical connections and associated wiring
  • Single point 460V/3PH/60HZ power application power connection for Chiller/Pump package
  • Temperature and pressure gauges (Inlet & Outlet)
150 Ton Chiller Package
