STARC 24” Negative Air Panel Containment Wall with 12” Duct Vent
- 24” negative air panel with 12” duct vent rental enables dust extraction from enclosed spaces
- Connects to negative air machines to filter out contaminants
- Integrated pressure ports allow easy monitoring of differential pressure to ensure proper containment
- 24” negative air panel with 12” duct vent rental enables dust extraction from enclosed spaces
- Connects to negative air machines to filter out contaminants
- Integrated pressure ports allow easy monitoring of differential pressure to ensure proper containment
Key Features
- 24” negative air panel with 12” duct vent rental enables dust extraction from enclosed spaces
- Connects to negative air machines to filter out contaminants
- Integrated pressure ports allow easy monitoring of differential pressure to ensure proper containment
- 6’10” to 10’3” adjustable height fits diverse spaces where air purification is critical
- Modular wall design facilitates quick installation and reconfiguration
- Sturdy RealWall™ w/ lightweight aluminum front, galvanized steel back and anodized aluminum frame
- Provides a clean, sanitary appearance suitable for healthcare and food prep environments

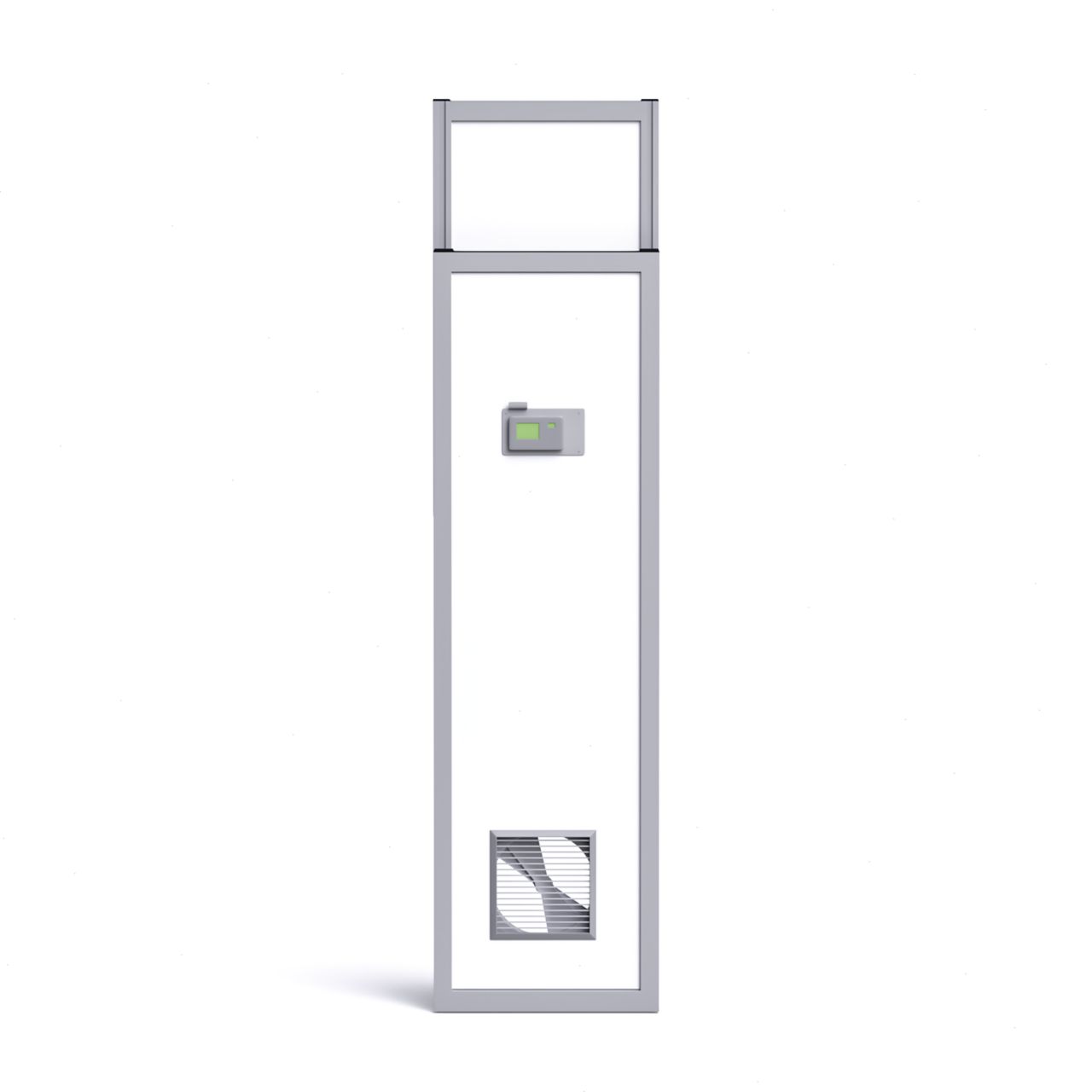

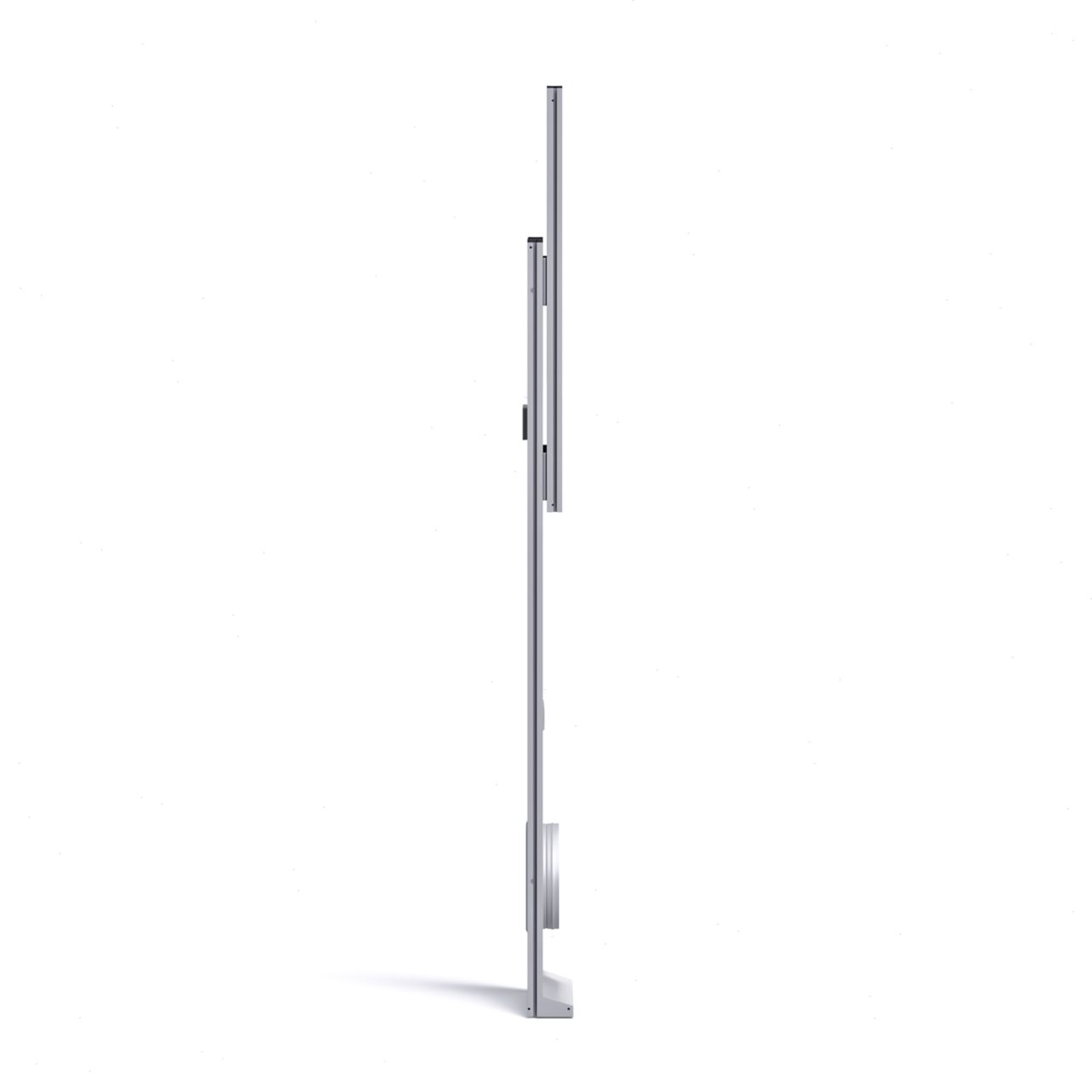

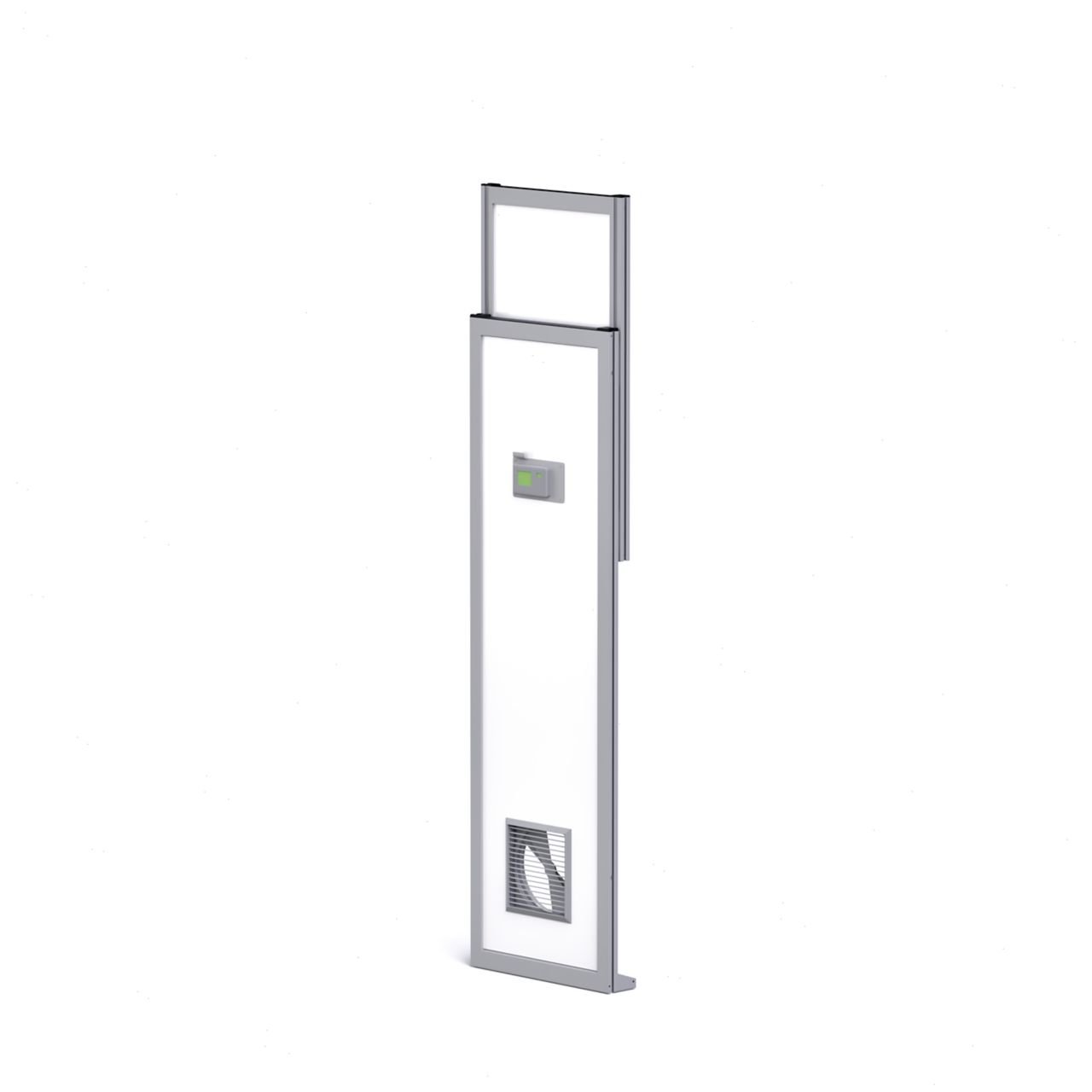

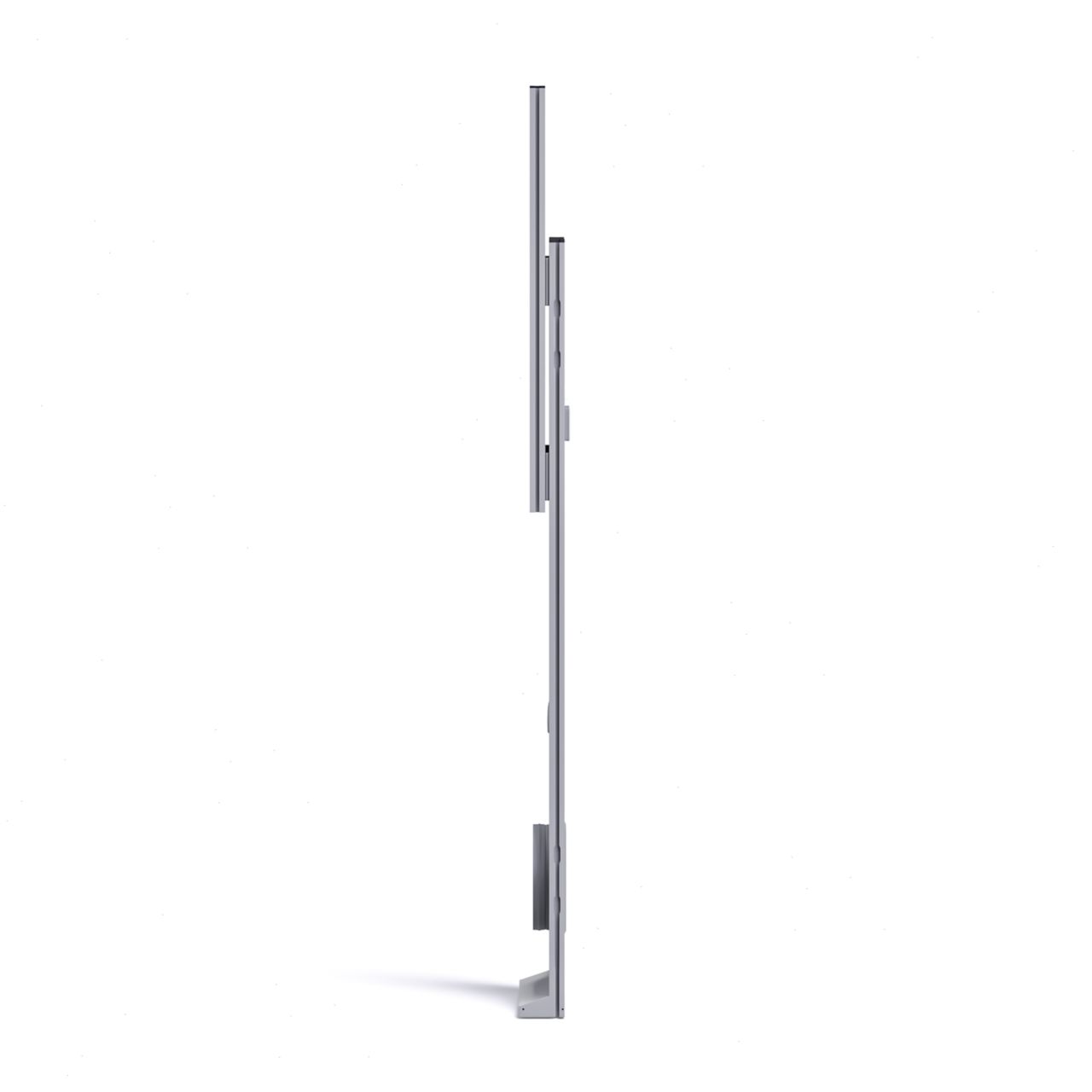

A modular barrier that creates negative pressure environments during renovations, healthcare projects, or construction, the 24" STARC negative air panel rental integrates a 12” duct vent to support HEPA filtration systems that remove dust and contaminants. Ideal setup for infection control, clean room maintenance, and other sensitive applications. This is also available in other sizes such as 18" 32", & 42"
Overview
A modular barrier that creates negative pressure environments during renovations, healthcare projects, or construction, the 24" STARC negative air panel rental integrates a 12” duct vent to support HEPA filtration systems that remove dust and contaminants. Ideal setup for infection control, clean room maintenance, and other sensitive applications. This is also available in other sizes such as 18" 32", & 42"
Key Features
- 24” negative air panel with 12” duct vent rental enables dust extraction from enclosed spaces
- Connects to negative air machines to filter out contaminants
- Integrated pressure ports allow easy monitoring of differential pressure to ensure proper containment
- 6’10” to 10’3” adjustable height fits diverse spaces where air purification is critical
- Modular wall design facilitates quick installation and reconfiguration
- Sturdy RealWall™ w/ lightweight aluminum front, galvanized steel back and anodized aluminum frame
- Provides a clean, sanitary appearance suitable for healthcare and food prep environments
Products are subject to availability.
Specifications
| Make | Starc |
| Model | Starc 24"negative Air Panel 12"duct Vent |
| Class IV ICRA Requirements | Exceeds Class IV ICRA Requirements |
| Differential | 1/4 inch W.C. Max Pressure Differential |
| Floor Pitch | 1/8 inch per foot max floor pitch |
| Floor Surface Variance | < 1/8 inch Variance Max Floor Roughness |
| Height | Adjustable from 6'10" to 12' |
| Weight | 80 lbs |
| Width | 42 " |
| pH Non-Condensation Rating | Up to 90% |
Specifications & documentation
Products are subject to availability.
Specifications
| Make | Starc |
| Model | Starc 24"negative Air Panel 12"duct Vent |
| Class IV ICRA Requirements | Exceeds Class IV ICRA Requirements |
| Differential | 1/4 inch W.C. Max Pressure Differential |
| Floor Pitch | 1/8 inch per foot max floor pitch |
| Floor Surface Variance | < 1/8 inch Variance Max Floor Roughness |
| Height | Adjustable from 6'10" to 12' |
| Weight | 80 lbs |
| Width | 42 " |
| pH Non-Condensation Rating | Up to 90% |
