CAT CLASS:
1150100

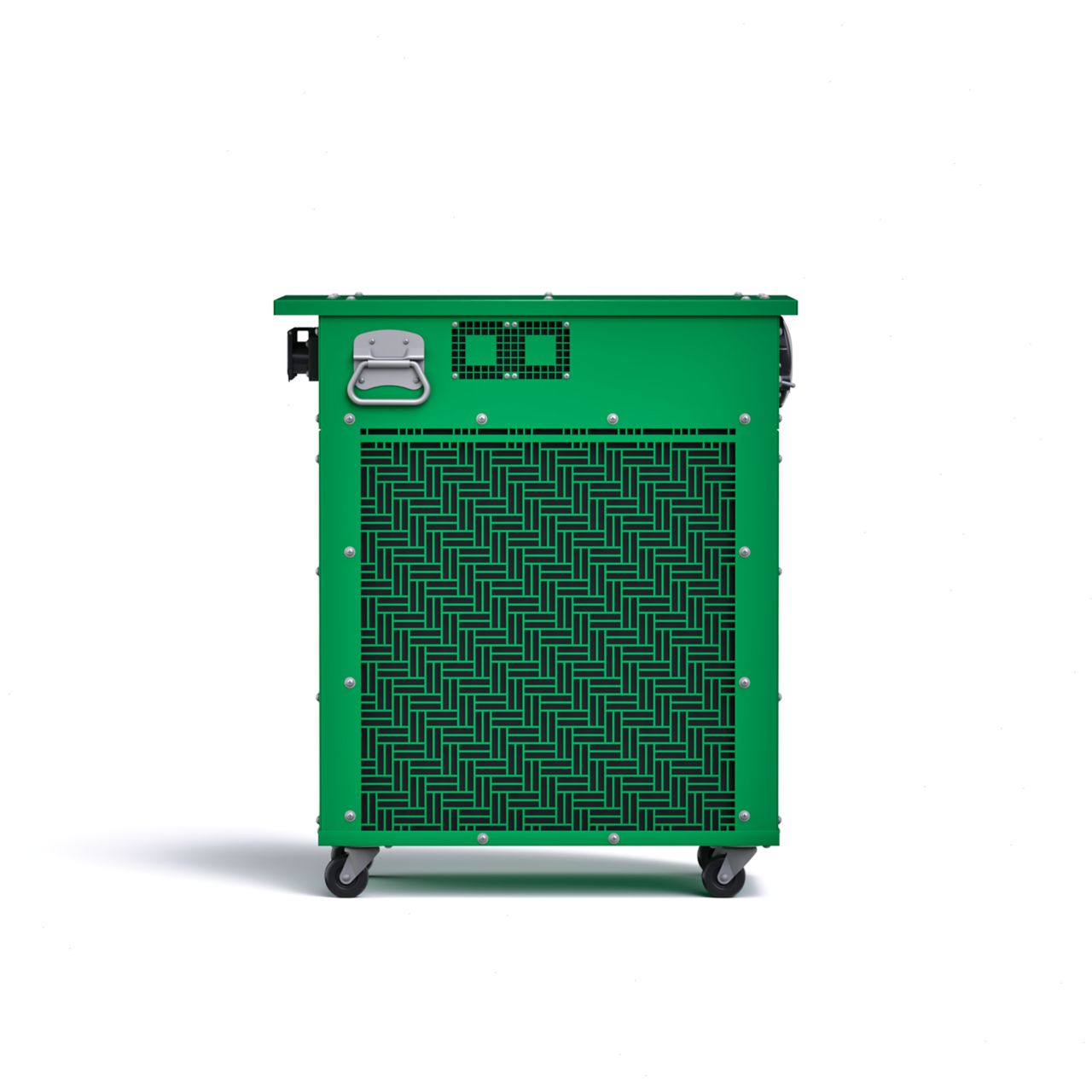

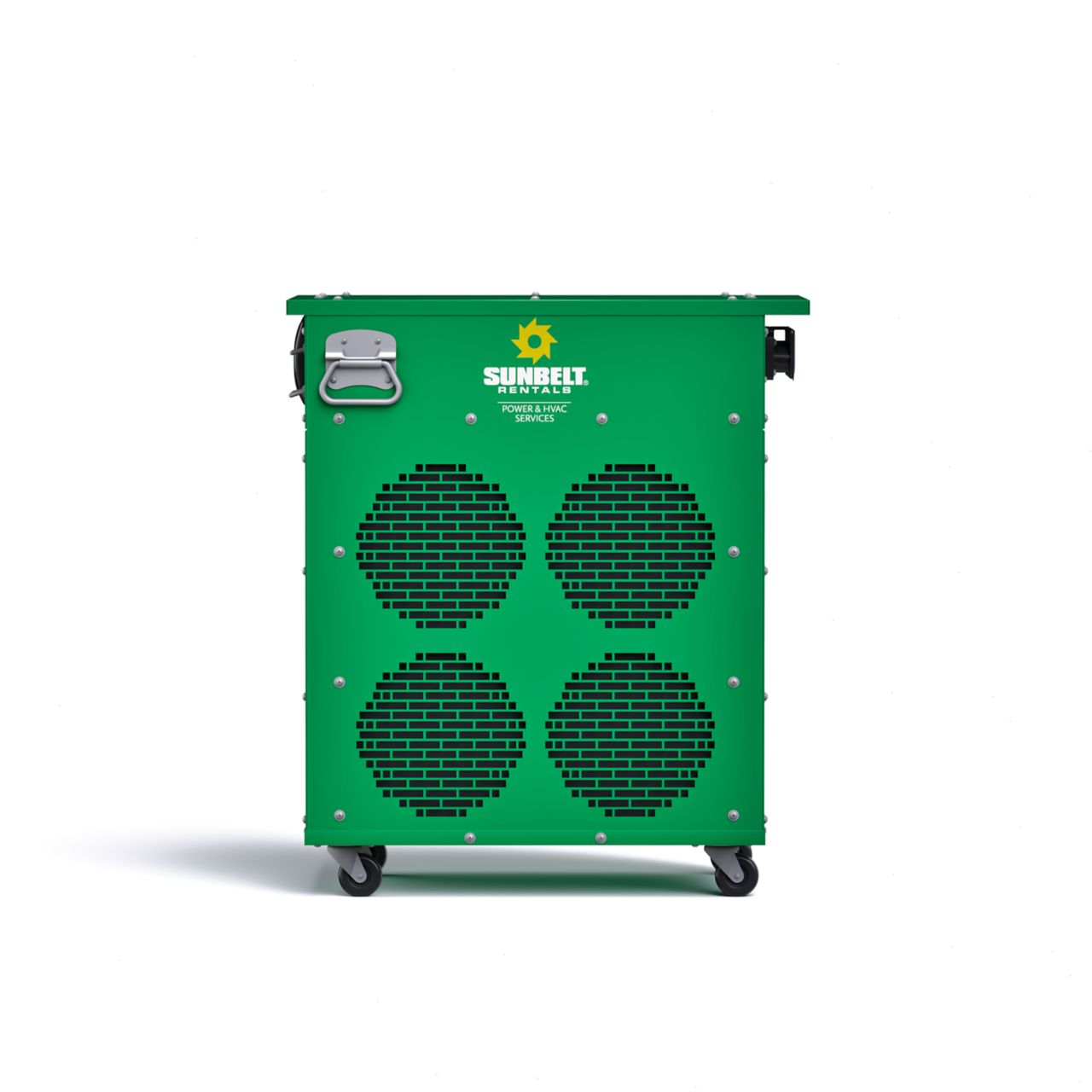

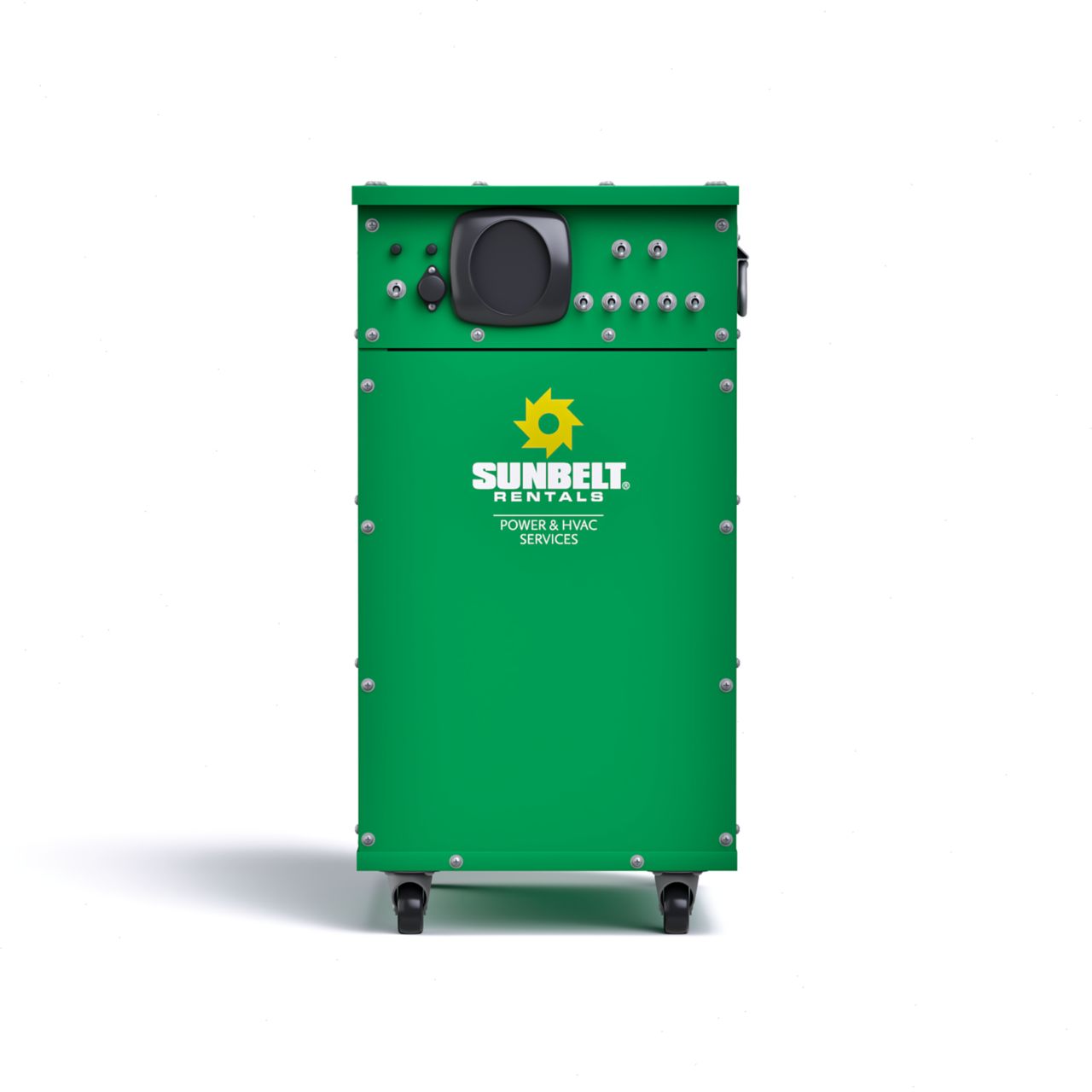

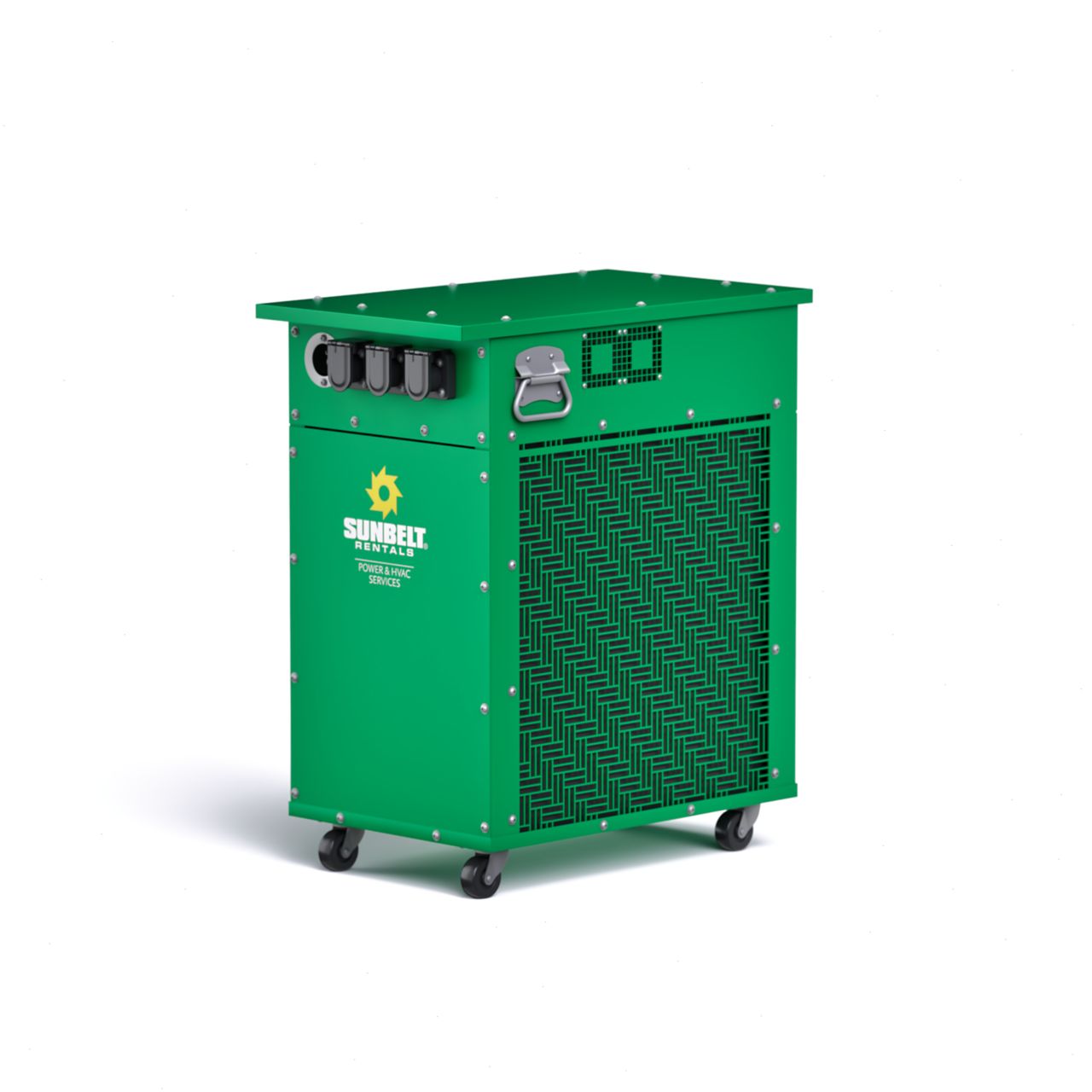

Remote Sigma LT Load Bank 100 kW 240/480V
Overview
The 100 kW load bank is a portable, self-contained AC resistive load bank designed for indoor use. The load bank gives users the freedom of a high capacity load in an ultra compact package. It is ideal for testing and maintenance of AC power sources such as emergency stand-by generators and UPS systems. The load bank provides up to 100 kW resistive load at 480 VAC, 3-phase. It provides 93.75 kW at 240 VAC, 3-phase. It provides 70.4 kW at 208 VAC, 3-phase. The load bank features horizontal air discharge to provide a low profile design. Quick connect camlock cable connections and simple operation allow the load bank to be set up and operated by a single technician, saving valuable time in the field. The load bank controls and cooling fans are powered by any standard 120 VAC, single-phase wall outlet with detachable line cord provided.
Specifications
Products are subject to availability.
| Make | Avtron |
| Model | LPH100 |
| 120V | X - Single Phase |
| 208V | X - 3 Phase |
| 240V | X - Single and 3 Phase |
| 480V | X - 3 Phase |
| Capacity | 100 kW* |
| Hertz | 60 |
| Load Step | 5 kW |
| Overall Dimensions | 25"L x 16"W x 29"H |
| Weight | 105 lbs |
Safety information
Safety Requirements
- Gloves
