CAT CLASS:
0580628

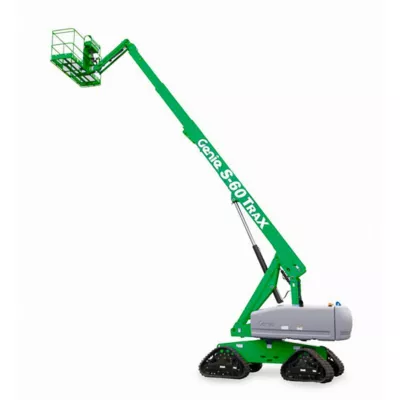

60' Straight Track Manlift
Overview
The 60' track manlift is an ideal option for the toughest jobs and terrains. This 60' telescopic boom lift with tracks is equipped with a single drive/steer joystick to allow one-handed operation. The track machine allows you to perform a wider range of heavier lift tasks on construction and industrial job sites. The manlift offers a dual lift capacity of 600 lbs unrestricted and 1,000 lbs restricted and the ability to have up to three people on board. In addition, the lift features an efficient, Tier 4 diesel engine. It has a platform height of 60' and a maximum working height of 66'. The platform measures 96" x 36" providing ample working space. In addition, the lift also features a 110V AC receptacle in the basket for a convenient power source at working height. The lift is 4-wheel drive operational and has a gradeability rating of 45%. Lastly, it is important to wear a safety harness while operating aerial lifts.
Specifications
Products are subject to availability.
| Make | Genie | JLG |
| Model | S-60 Trax | 600SC |
| Fuel Type | Diesel | Diesel |
| Gradeability | 45% | 55% |
| Horizontal Reach | 50.8300 ' | 50.3000 ' |
| Platform Capacity | 1000 lbs | N.A. |
| Platform Height | 60 ' | 60 ' |
| Platform Size | 96" x 36" | 96" x 36" |
| Restricted Platform Capacity | 1000 lbs | 1000 lbs |
| Retracted Height | 9.1667 ' | 8.3333 ' |
| Transport Width | 100 " | 98 " |
| Unrestricted Platform Capacity | 660 lbs | 500 lbs |
| Weight | 25430 lbs | 22500 lbs |
Safety information
Safety Requirements
- Safety Harness
- Wallet (Training Card)
