CAT CLASS: 0530230

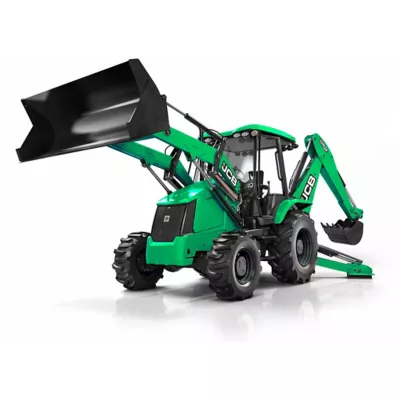

4WD Standard Backhoe w/ Canopy
CAT CLASS: 0530230
4WD Standard Backhoe w/ Canopy
Overview
Backhoe loaders provide outstanding versatility, performing a variety of digging, loading, and utility applications. This 4WD standard backhoe includes a canopy, a 4-speed synchronized transmission, and a 24” width standard backhoe bucket. The maximum digging depth is 14’9” and the maximum backhoe lift capacity is 4,859 lbs.
Specifications
Products are subject to availability.
| Make | Case | Case | JCB | John Deere | John Deere |
| Model | 580M 4WD Canopy | 580N 4WD EX Canopy | 580N 4WD Canopy | 310G 4WD Canopy | 310KEP 4WD Canopy |
| Backhoe Lift Capacity | 4,112 lbs. | 3,910/2,855 lbs. | 4,099 lbs. | 4,859 lbs. | 4,420 lbs. |
| HP | 78 | 78 | 74 | 70 | 70 |
| Loader Dump Height | 106 " | 106 " | 108 " | 106 " | 106 " |
| Loader Lift Capacity | 6803 lbs | 6803 lbs | 7670 lbs | 5800 lbs | 6600 lbs |
| Max Digging _Depth | 14' 9" | 14' 9"/18' 3" | 14' 7" | 14' 3" | 14' 2" |
| Overall Dimensions | 23'L x 84"W x 11'1"H | 23'L x 84"W x 11'1"H | 24'L x 92"W x 11'3"H | 23'L x 86"W x 11'3"H | 23'L x 86"W x 10'11"H |
| Weight | 14564 lbs | 14893 lbs | 15439 lbs | 12800 lbs | 14283 lbs |
Safety information
Safety Requirements
- Hard Hat
- Safety Shoes
